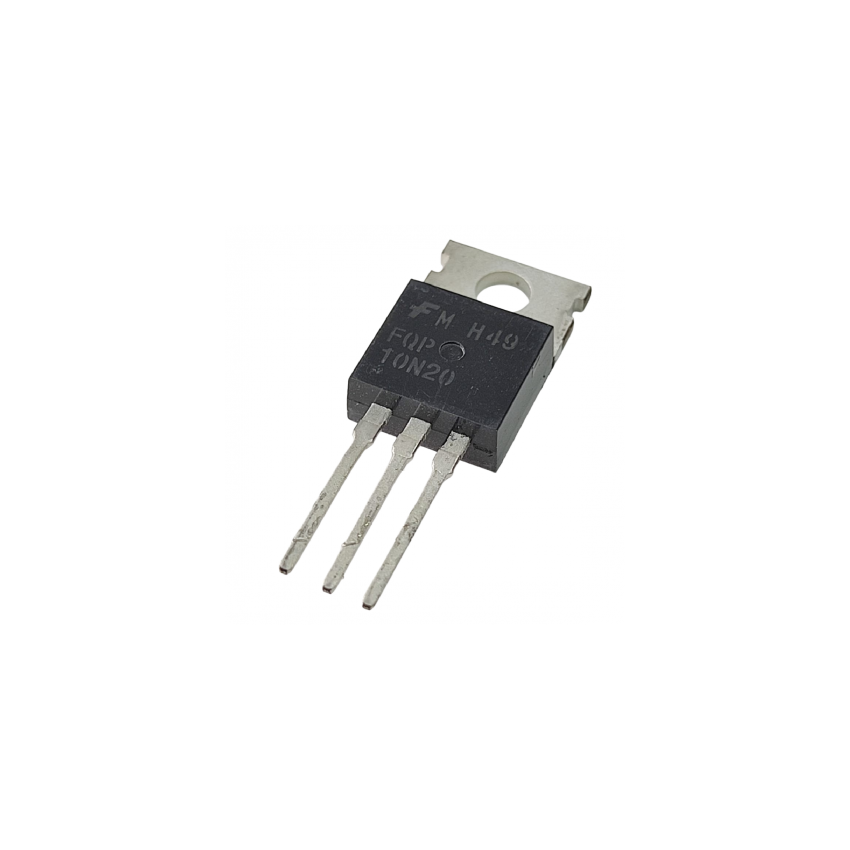

FQP10N20C,N-Channel MOSFET,200V,9.5A,72W,TO-220

SKU
SCTx0900
Part Number
FQP10N20C
In stock

Guarantee safe & secure checkout

The FQP10N20C is a high-performance N-Channel QFET MOSFET designed for efficient power management. It operates with a drain-to-source voltage of up to 200V and can handle continuous currents up to 9.5A. Engineered using advanced planar and DMOS technology, this MOSFET ensures low gate charge and superior switching performance, making it suitable for high-frequency applications like power supplies, active power factor correction, and motor controls.

The FQP10N20C features rugged avalanche characteristics for better reliability, ensuring seamless operation in demanding environments. Its compact TO-220 and TO-220F packages simplify integration into circuit designs.

Key Features :

  • High Voltage Rating: Supports up to 200V drain-to-source voltage.
  • High Current Handling: Can conduct up to 9.5A continuous drain current at 25C.
  • Low Rds(on): Maximum 0.36Ohm at Vgs = 10V for reduced conduction losses.
  • Low Gate Charge: Typical value of 20 nC for fast switching applications.
  • Wide Operating Temperature Range: Operates from -55C to 150C.
  • Rugged Avalanche Rating: 100% avalanche tested for enhanced reliability.
More Information
Mounting Style Through Hole
Max Voltage N/A
