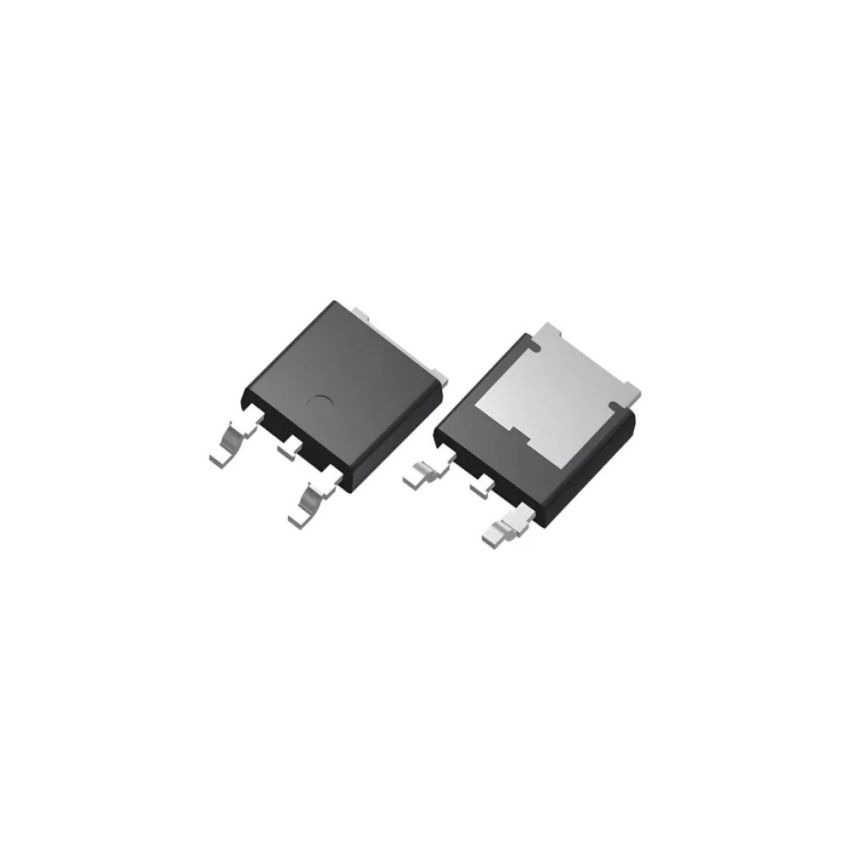

D10NF10, N-Channel 100V Power MOSFET, DPAK Package

The D10NF10 is an N-channel Power MOSFET designed using STMicroelectronics' STripFET™ II technology, which minimizes input capacitance and gate charge. This design makes it ideal for high-efficiency, high-frequency isolated DC-DC converters in telecom and computer applications, as well as other switching applications requiring low gate drive requirements. The device's low on-resistance and fast switching capabilities contribute to reduced power losses and improved overall system efficiency.

• Low On-Resistance: R_DS(on) of 0.115Ω minimizes conduction losses.
• High Current Capability: Supports continuous drain current up to 13A.
• Low Gate Charge: Total gate charge of 15.3nC ensures efficient switching.
• Fast Switching Performance: Turn-on delay time of 16ns and turn-off delay time of 32ns.
• Exceptional dv/dt Capability: Enhances performance in high-speed applications.
• DPAK Package: Offers efficient thermal performance and compact size.
