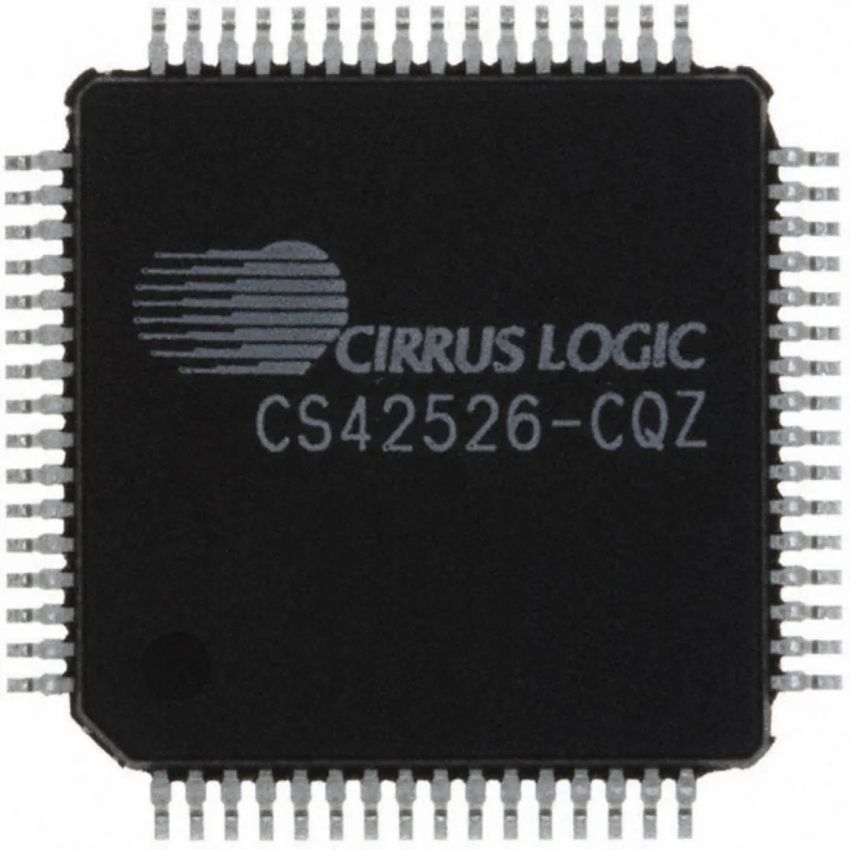

CS42526-CQZ, 24-Bit, 192 kHz Multi-Channel Audio Codec, QFP-64

The CS42526-CQZ is a high-performance, multi-channel audio codec designed for professional and consumer audio applications. Featuring 24-bit resolution and high sample rates up to 192 kHz, this IC provides exceptional audio fidelity for AV receivers, sound cards, home theater systems, and recording equipment.

The device integrates six ADC channels and eight DAC channels, supporting high-performance analog-to-digital and digital-to-analog conversion for multi-channel audio processing. It features low-latency digital mixing and volume control, making it suitable for advanced audio signal processing.

The CS42526-CQZ offers flexible digital audio interfaces, including I2S, Left-Justified, Right-Justified, and TDM serial formats, ensuring seamless integration with DSPs, microcontrollers, and FPGA-based systems. With a wide supply voltage range (1.8V to 5.25V) and power-efficient operation, this codec is optimized for low-power and high-fidelity applications.

Packaged in a 64-pin LQFP (Low Quad Flat Package), the CS42526-CQZ is designed for surface-mount applications, making it an ideal choice for compact and high-performance audio systems.

• High-Resolution Audio Processing: Supports 24-bit conversion at sample rates up to 192 kHz, ensuring studio-quality sound reproduction.
• Multi-Channel Codec: Integrates six analog-to-digital converters (ADC) and eight digital-to-analog converters (DAC) for multi-channel audio processing.
• Flexible Digital Audio Interfaces: Provides I2S, Left-Justified, Right-Justified, and TDM serial interfaces, making it compatible with various audio systems.
• Low-Latency Digital Mixing: Features digital volume control and mixing for enhanced flexibility in multi-channel processing applications.
• Wide Supply Voltage Range: Operates with analog, digital, serial, and control voltage rails, supporting voltages from 1.8V to 5.25V, ensuring compatibility with modern embedded systems.
• QFP-64 Package for Compact Integration: Surface-mount package (LQFP-64) for space-efficient PCB layout in professional and consumer audio applications.
