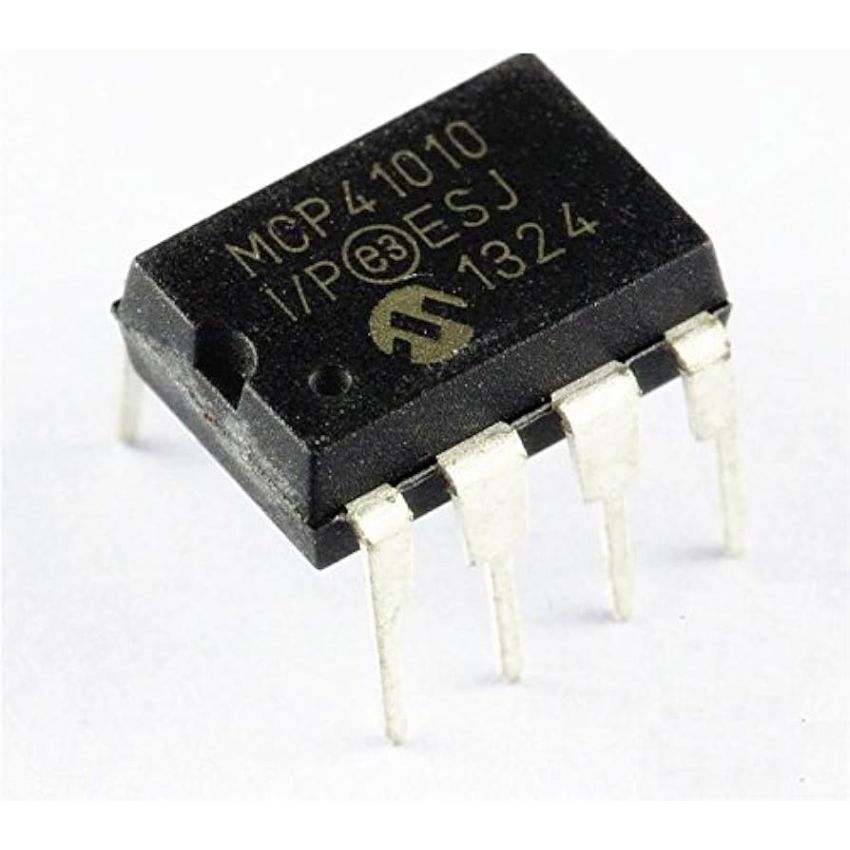

MCP41010-I/P DIP-8 ,Digital Potentiometer - 10 kΩ, Single Channel, SPI Interface

The MCP41010-I/P is a single-channel digital potentiometer with a resistance value of 10 kΩ and features a PDIP-8 package. It operates through a simple SPI interface, making it suitable for applications where fine-tuned resistance control is needed. It provides 256 taps for each potentiometer, allowing precise adjustments. The device supports both Rheostat and Potentiometer modes, making it highly versatile in design.

With its low-power CMOS technology, this digital potentiometer offers high reliability and power efficiency. Operating from a single power supply (2.7V - 5.5V), it is ideal for low-power, cost-sensitive applications. The MCP41010 is also compatible with industrial temperature ranges, enhancing its usability in a wide range of operating environments.

Key Features :

• 256 Taps: Each potentiometer offers 256 distinct resistance settings for fine-tuning.
• Resistance Value: 10 kΩ per potentiometer with ±1 LSB non-linearity.
• Interface: Operates with an SPI interface (Mode 0,0 and 1,1), compatible with microcontroller control.
• Low Power: CMOS technology ensures minimal power consumption during operation.
• Rheostat and Potentiometer Modes: Supports multiple operation modes for different applications.
• Industrial Temperature Range: -40°C to +85°C, suitable for harsh environments.
