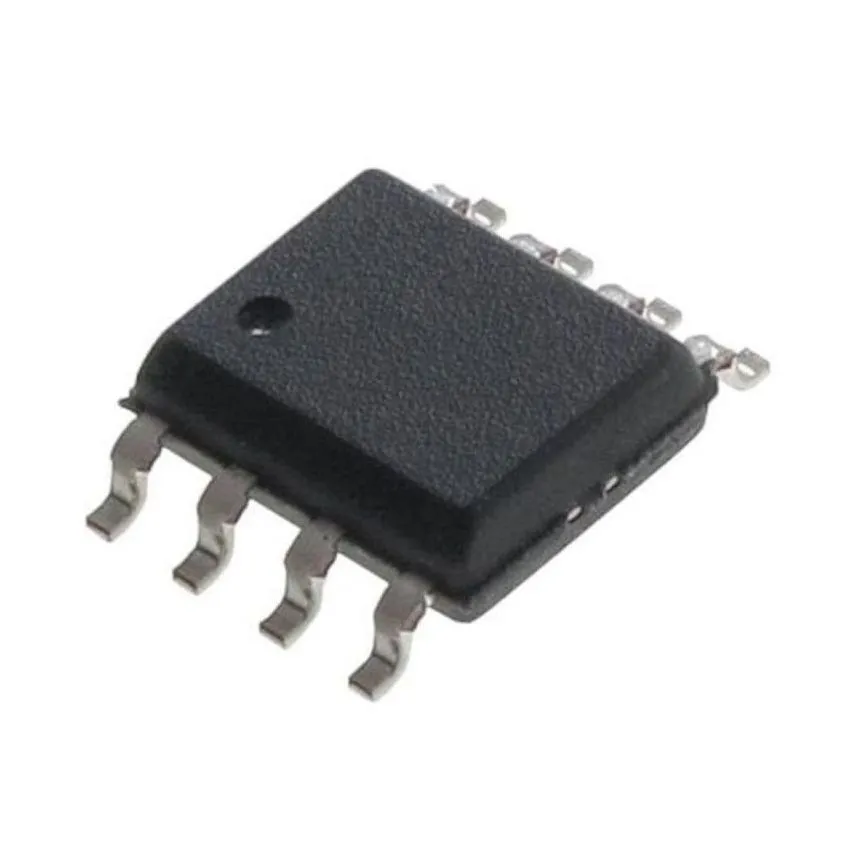

LP2951CM, Low Dropout Voltage Regulator, 5V Output, SMD-8 SOIC Package Type
AEDÂ 8.00
In stock
Guarantee safe & secure checkout
The LP2951CM is a low dropout (LDO) voltage regulator from Texas Instruments, offered in an 8-pin SOIC surface mount package. It provides a precision regulated output with either a fixed voltage (commonly 5V) or an adjustable configuration via external resistors. With an ultra-low quiescent current of just 75 µA and built-in thermal and short-circuit protection, the LP2951CM is ideal for battery-powered and low-power applications.
Key Features:
- Adjustable and fixed output options (including 5V)
- Low dropout voltage: 380mV @ 100mA
- Output current up to 100mA
- Extremely low quiescent current: 75µA (typical)
- On-chip error flag and shutdown
- Thermal and short-circuit protection
Additional Specifications:
- Package Type: SOIC-8
- Supply Voltage: 2.3V to 30V
- Current: 100 mA
- Type: Low Dropout Voltage Regulator
