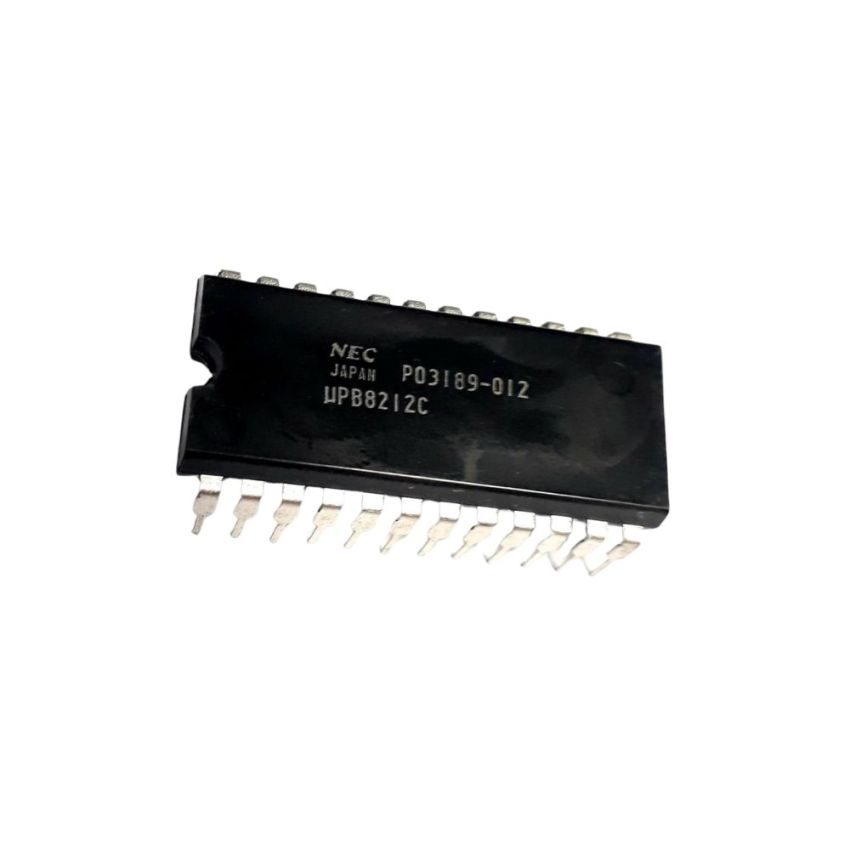

UPB8212C, 8-Bit Input/Output Port, DIP-24

The UPB8212C is an 8-bit input/output port designed to act as an interface between microprocessors and peripheral devices. It features a bidirectional data port with programmable control, making it ideal for efficient data transfer. With high-speed operation and TTL-compatible inputs and outputs, the UPB8212C ensures fast and reliable communication. The device also supports interrupt-driven data transfers, enabling responsive microprocessor interactions. Packaged in a standard 24-pin DIP, the UPB8212C is designed for through-hole PCB integration, making it a practical choice for microprocessor-based systems.

• 8-Bit Bidirectional Data Port – Facilitates seamless data transfer between a microprocessor and peripheral devices.
• Programmable Control – Allows flexible data handling and device interfacing.
• High-Speed Operation – Optimized for quick response and efficient data transmission.
• TTL-Compatible Inputs and Outputs – Ensures compatibility with standard TTL logic levels.
• Interrupt Capability – Supports interrupt-driven data transfers, enhancing system responsiveness.
• Compact 24-Pin DIP Package – Simplifies integration into through-hole PCB designs.
