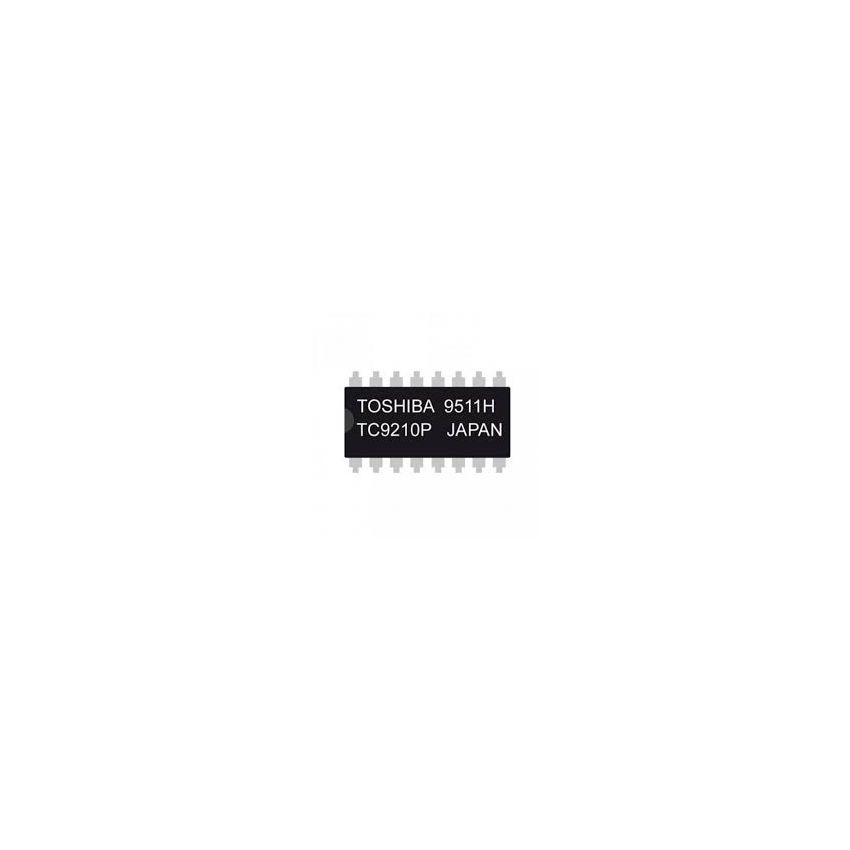

TC9210P, Electronic Volume Control IC, DIP-16

The TC9210P is a high-performance Electronic Volume Control IC designed for audio systems, enabling precise adjustment of volume, balance, and tone. This IC eliminates the need for mechanical potentiometers, offering smooth and reliable electronic control for high-quality sound systems.

The TC9210P supports serial data control, making it easy to integrate with digital systems and microcontrollers. Its dual or single power supply configuration adds versatility, making it ideal for a wide range of audio equipment, including home stereos, AV receivers, and professional sound systems. With a DIP-16 package, the IC is easy to handle and integrate into through-hole PCB designs, ensuring straightforward prototyping and production use.

• Electronic Volume Control: Provides precise and smooth control of audio levels electronically without mechanical potentiometers.
• Integrated Tone and Balance Adjustment: Allows for fine-tuning of audio tone and balance, enhancing sound quality.
• Serial Data Control: Simplifies integration with digital systems by utilizing a serial data interface.
• Dual or Single Power Supply: Offers design flexibility with support for both single and dual power supply configurations.
• Compact DIP-16 Package: Through-hole design ensures easy integration and prototyping for audio equipment.
• Reliable Performance: Developed by Toshiba, ensuring high-quality performance for audio systems.
