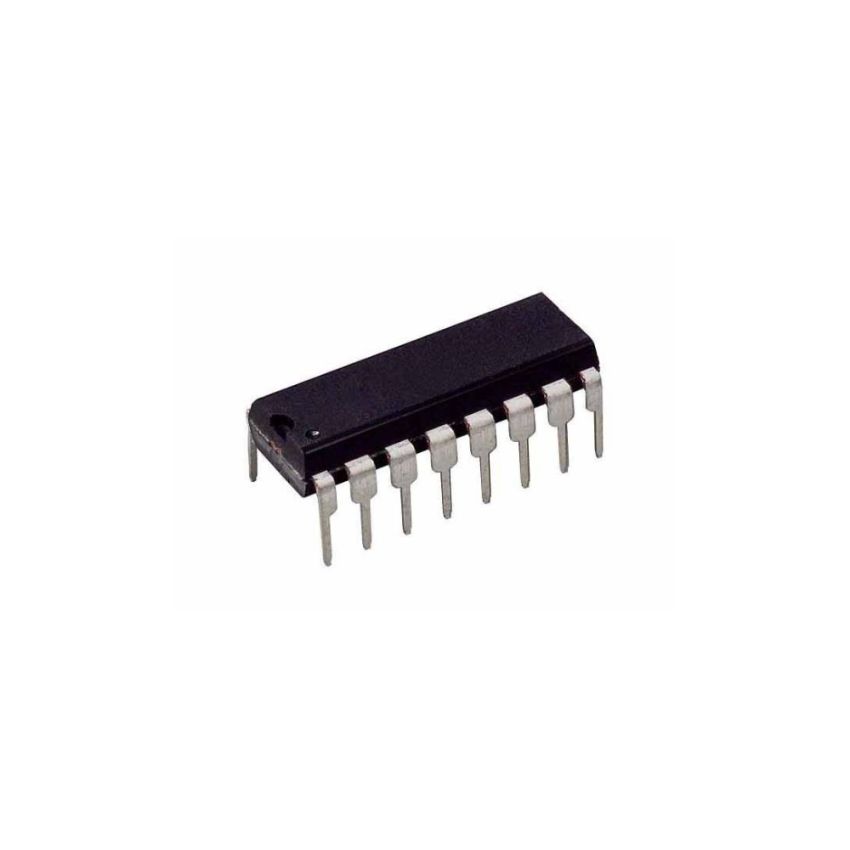

TD62107P, 4-Channel High-Current Darlington Sink Driver - DIP-16

The TD62107P is a high-voltage, high-current Darlington driver IC designed to drive various loads such as relays, lamps, hammer drivers, and stepper motor windings. It features four Darlington transistors with built-in clamp diodes for switching inductive loads. With a wide supply voltage range from 4.75V to 7V and input compatibility with TTL and 5V CMOS logic levels, this IC is ideal for a wide range of industrial and consumer electronics applications.

The built-in input enable feature allows for selective control of outputs, while the integrated heat sink ensures efficient thermal management in demanding conditions. The device comes in a compact DIP-16 package for through-hole mounting, offering ease of use and reliable performance in dense circuit designs.

Key Features:

• High output current (750 mA per channel).
• Built-in clamp diodes for inductive load protection.
• Wide input voltage range: 4.75V to 7V.
• TTL and 5V CMOS compatible inputs.
• Compact and robust DIP-16 package.
• Integrated enable inputs for selective output control.
