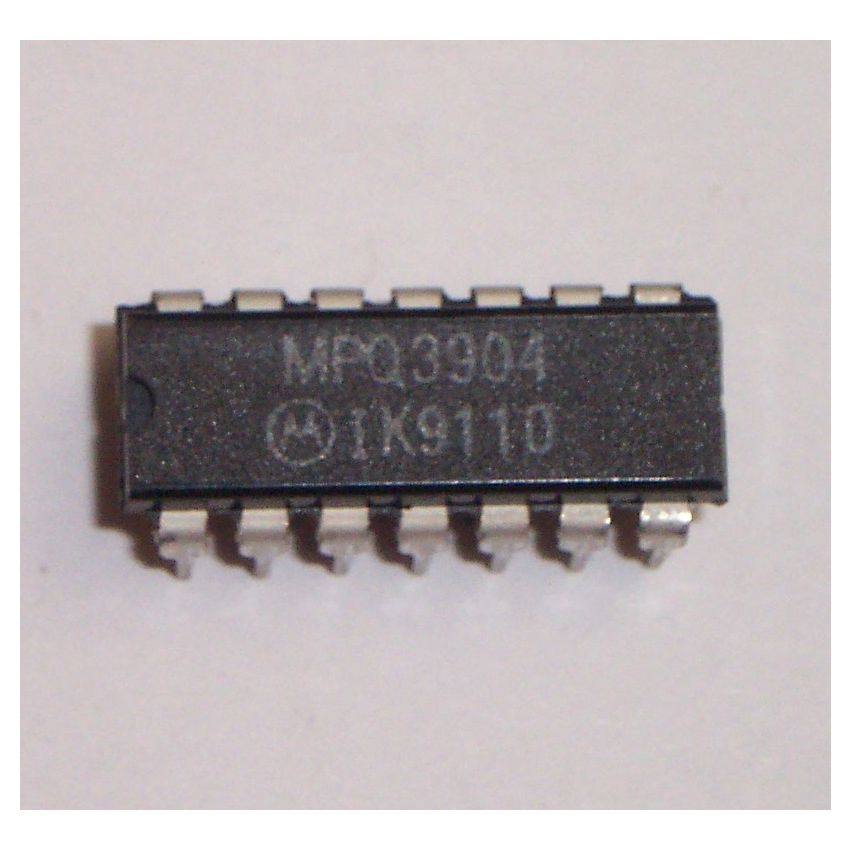

MPQ3904, NPN Quad Transistor - 40V, 200mA, TO-116

The MPQ3904 is a silicon NPN quad transistor in a TO-116 package, designed for a wide range of general-purpose amplifier and switching applications. This transistor contains four independent NPN transistors integrated into a 14-pin DIP package. With a maximum collector-emitter voltage of 40V and continuous collector current of 200mA per transistor, it offers excellent performance and reliability in compact designs.

Key Features :

• Quad NPN Transistors: Four independent NPN transistors integrated into a single TO-116 DIP package for compact designs.
• High Voltage Capability: Collector-emitter voltage (VCEO) of up to 40V, suitable for various applications.
• Low Power Dissipation: Maximum power dissipation of 500mW (total package), ensuring efficient operation.
• High Current Capacity: Continuous collector current (IC) of 200mA per transistor for versatile circuit designs.
• Wide Operating Temperature Range: Operates between -65C and +150C, ensuring reliability under extreme conditions.
• Fast Switching: Features low storage time (37ns) and fall time (136ns) for high-speed operation.
