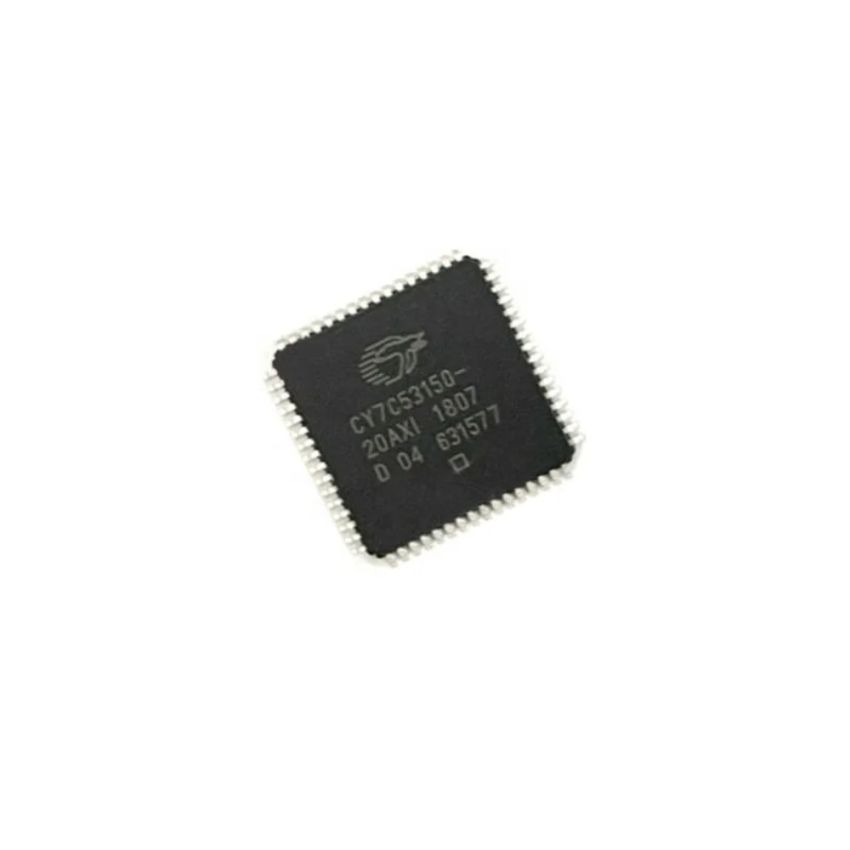

The CY7C53150 is a high-performance Neuron chip network processor developed by Cypress Semiconductor for LonWorks distributed control networks. This microcontroller integrates all necessary network communication and control functions onto a single chip, making it a cost-effective and efficient solution for intelligent control systems.
It features three 8-bit pipelined processors, enabling parallel execution of network traffic handling and application processing. The built-in 5-pin communication port allows for seamless transceiver connectivity, supporting twisted-pair, powerline, RF, infrared (IR), fiber optics, and coaxial networking media.
The CY7C53150 provides 2KB of on-chip SRAM, ensuring efficient data buffering for system and application needs. Additionally, its 512B Flash memory allows for non-volatile storage of firmware configuration and runtime settings. The microcontroller operates at 5V and supports external memory addressing up to 58KB.
With programmable I/O ports (configurable in 34 modes) and two 16-bit timers/counters, the CY7C53150 is a versatile solution for industrial automation, building management, and smart sensor networks.
Key Features :- Three 8-bit Pipelined Processors: Enables concurrent processing of application code and network traffic.
- Integrated 2KB SRAM: Provides efficient data buffering for network and application storage.
- 512 Bytes of Flash Memory: Offers flexible storage for configuration data and application code.
- 5-Pin Communication Port: Supports direct connection to transceivers for network communication.
- Programmable I/O Ports: 11-pin I/O ports configurable in 34 modes, providing enhanced flexibility.
- Two 16-bit Timers/Counters: Supports I/O waveform generation and event measurement.
