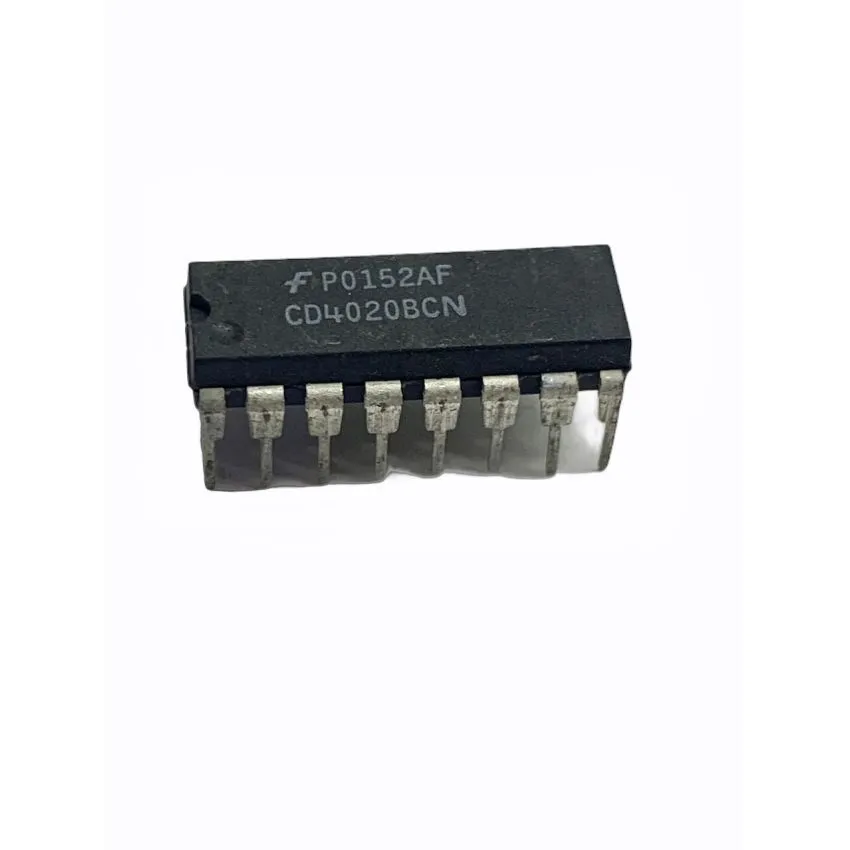

CD4020BCN, 14-Stage Ripple Carry Binary Counter, DIP-16

The CD4020BCN is a 14-stage ripple carry binary counter, designed for frequency division, digital timing, and pulse counting applications. The counter advances one count per negative clock transition, and an asynchronous reset allows for instant clearing of all stages. Operating within a voltage range of 3V to 15V, the CD4020BCN supports a maximum clock frequency of 8 MHz, making it suitable for high-speed counting applications. Its Schmitt trigger clock input ensures improved noise immunity, making it ideal for use in high-accuracy digital systems. The DIP-16 package allows for easy integration into standard PCB layouts, making this counter a reliable solution for engineers and developers working on frequency division, sequencing, and timing circuits.

• 14-Stage Ripple Carry Counter – Allows for high-precision frequency division with 14 binary counting stages.
• Wide Operating Voltage Range – Functions efficiently between 3V and 15V, ensuring broad compatibility​
• High-Speed Performance – Supports a maximum clock frequency of 8 MHz, suitable for high-frequency applications​CD4020BC.
• Asynchronous Reset Function – Provides an instant reset capability for controlled counting operations.
• Schmitt Trigger Clock Input – Enhances noise immunity for stable and reliable performance.
• DIP-16 Package for Easy Integration – Through-hole design ensures seamless mounting on PCBs and breadboards.
