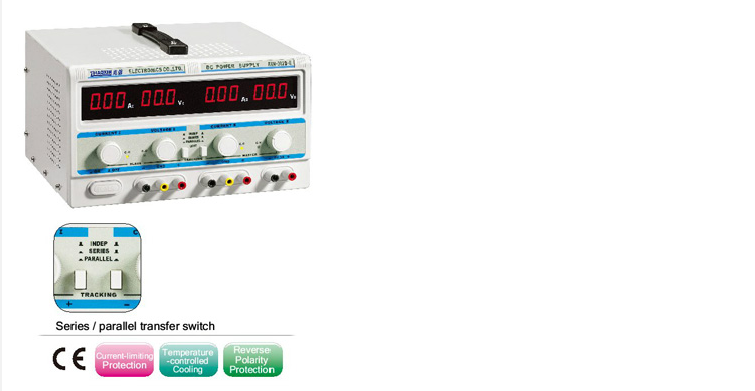

RXN-305D-II Linear Triple DC Power Supply

The RXN-305D-II Linear Triple DC Power Supply is a high-performance bench power supply designed for laboratories, educational institutions, and electronics repair environments. It features two adjustable DC outputs and one fixed output, allowing it to power multiple circuits simultaneously. With low ripple, high stability, and linear regulation, the RXN-305D-II delivers clean and reliable power for sensitive electronic applications. Tracking modes enable series or parallel operation, making it highly versatile for advanced testing and development work.

Key Features & Technical Details:

• Output Channels: Triple output
  • CH1 & CH2: Adjustable
  • CH3: Fixed
• Output Voltage & Current:
  • CH1: 0–30 V DC / 0–5 A
  • CH2: 0–30 V DC / 0–5 A
  • CH3: 5 V DC / 3 A (fixed)
• Total Power Output: Up to 300 W
• Regulation Type: Linear regulation for low ripple and noise
• Tracking Modes:
  • Independent
  • Series tracking (higher voltage)
  • Parallel tracking (higher current)
  • Display: Dual digital LED display for voltage and current
• Protection:
  • Overload protection
  • Short-circuit protection
• Cooling: Intelligent fan cooling for thermal stability
• Applications: R&D labs, electronics servicing, training labs, and prototyping
• Build: Rugged metal enclosure for long-term reliability
