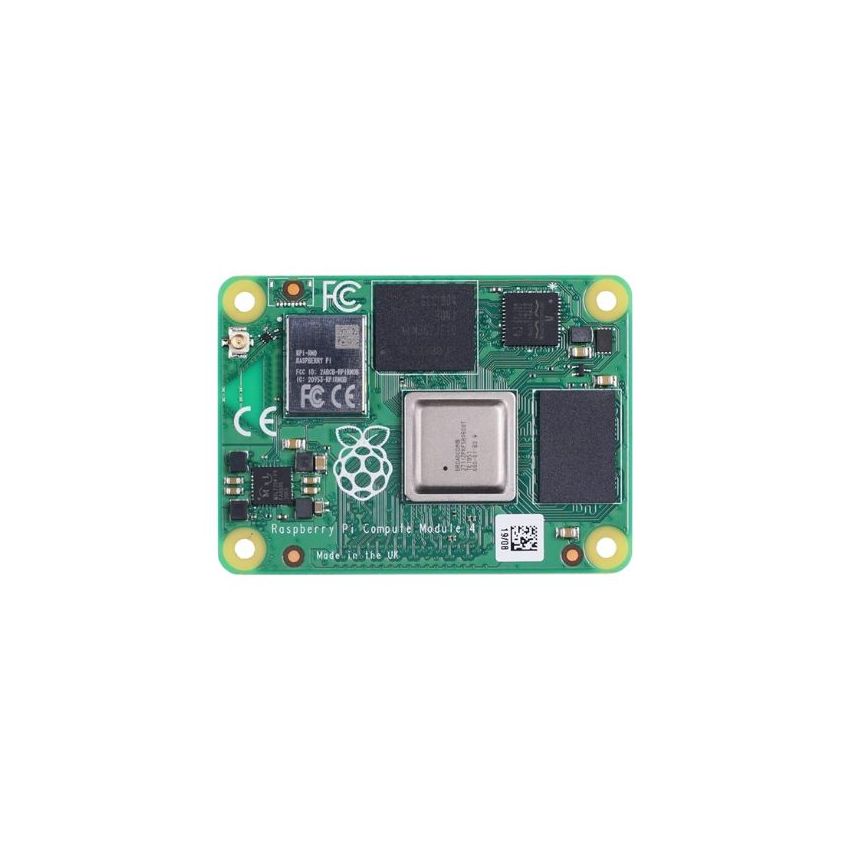

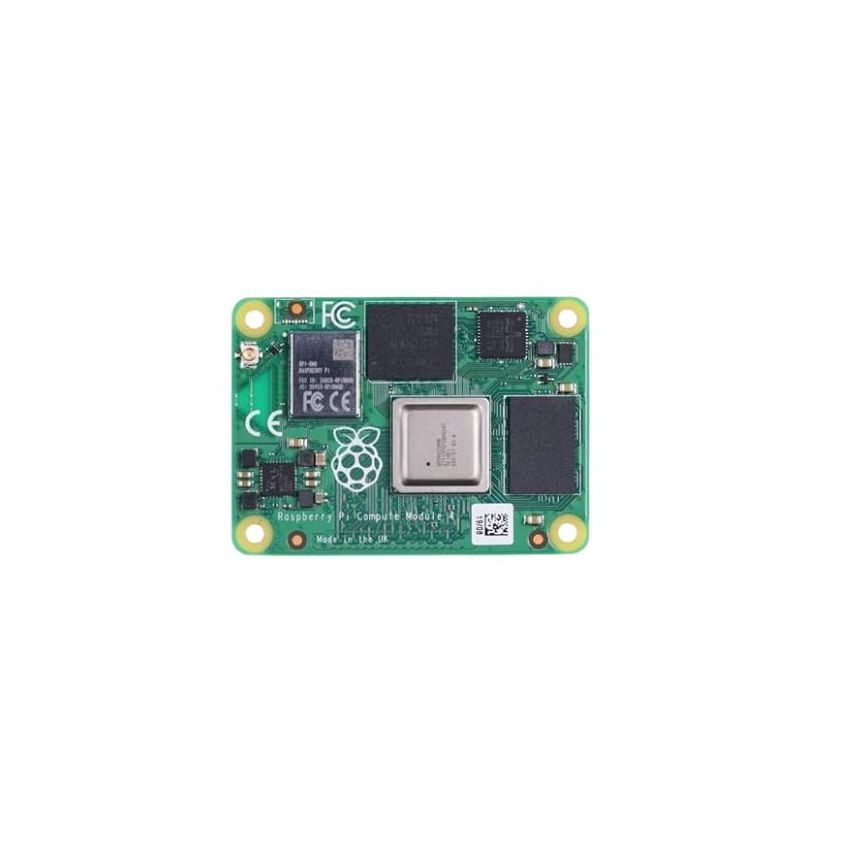

The SC0678 CM4108032 Raspberry Pi Compute Module 4 Rev5 is a high-performance System-on-Module (SoM) designed for embedded and industrial applications requiring flexibility, compact design, and powerful processing capabilities. Built on the same architecture as the Raspberry Pi 4 Model B, this module integrates a quad-core ARM Cortex-A72 processor, LPDDR4 RAM, onboard eMMC storage, and wireless connectivity into a compact form factor.
This variant features 8GB of RAM and 32GB eMMC storage, making it ideal for data-intensive applications, edge computing, industrial automation, and custom hardware development. It also includes onboard WiFi and Bluetooth, supporting seamless wireless communication.
The Compute Module 4 utilizes dual high-density connectors, enabling extensive I/O expansion including PCIe, dual HDMI, Gigabit Ethernet, USB, and multiple GPIO interfaces. This makes it highly suitable for custom carrier board designs where additional interfaces and flexibility are required beyond standard Raspberry Pi boards.
With its compact footprint and powerful performance, the CM4 Rev5 is the perfect solution for developers and engineers looking to integrate Raspberry Pi capabilities into scalable and production-ready systems.
Key Features:
- Powerful quad-core ARM Cortex-A72 processor running at 1.5GHz for high-performance computing
- 8GB LPDDR4 RAM ensures smooth multitasking and demanding application support
- 32GB onboard eMMC storage for fast and reliable data access
- Integrated WiFi and Bluetooth for wireless connectivity and IoT applications
- Compact System-on-Module design ideal for embedded and industrial solutions
- Extensive I/O support including PCIe, dual HDMI, Gigabit Ethernet, USB, and GPIO
Specifications:
- Part Number: SC0678
- Module Code: CM4108032
- Processor: Broadcom Quad-Core Cortex-A72 (ARM v8) @ 1.5GHz
- RAM: 8GB LPDDR4
- Storage: 32GB eMMC
- Wireless: WiFi (2.4GHz & 5GHz), Bluetooth 5.0
- Ethernet: Gigabit Ethernet PHY
- PCIe: 1× PCIe Gen2 lane
- USB: 1× USB 2.0
- Display: Dual HDMI 2.0 (up to 4K)
- Camera/Display Interfaces: MIPI CSI / DSI
- GPIO: Up to 28 pins configurable (1.8V / 3.3V)
- Power Input: +5V DC
- Form Factor: 55 × 40 mm
