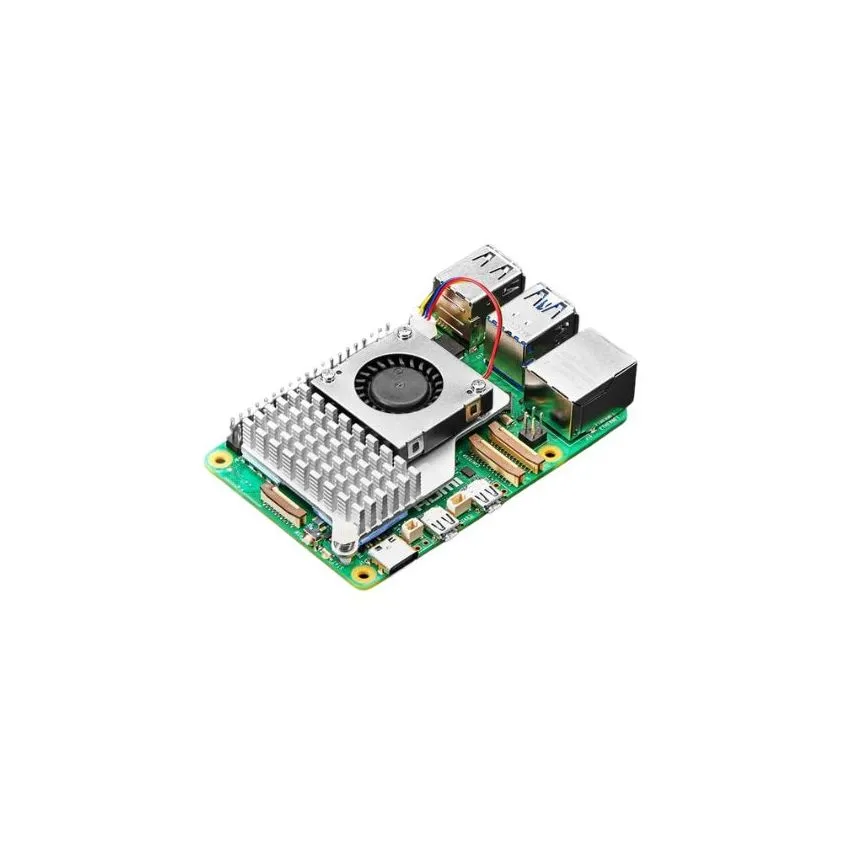

SC1148 ,Raspberry Pi Active Cooler

The Raspberry Pi Active Cooler (SC1148) is an official high-performance cooling solution designed specifically for the Raspberry Pi 5, providing efficient thermal management for demanding applications. Combining a precision-engineered aluminium heatsink with a temperature-controlled blower fan, it ensures your Raspberry Pi operates at optimal temperatures even under continuous heavy workloads.

This active cooling solution is ideal for applications such as media processing, AI workloads, overclocking, and industrial use where sustained performance is critical. The integrated fan is PWM-controlled, allowing dynamic speed adjustment based on system temperature, ensuring efficient cooling while maintaining low noise levels.

The cooler attaches securely to the Raspberry Pi 5 using spring-loaded push pins, ensuring firm contact with the processor for maximum heat transfer. It also comes with pre-applied thermal pads, simplifying installation and enhancing thermal conductivity.

Powered directly via the Raspberry Pi 5 fan header, the Active Cooler eliminates the need for additional power connections, making it a clean and efficient solution for thermal management. Its compact design allows it to be used in both open setups and compatible enclosures.

Designed and manufactured by Raspberry Pi, the SC1148 Active Cooler is the recommended solution for maintaining performance stability and preventing thermal throttling in Raspberry Pi 5 systems.


Key Features:

• Combined aluminium heatsink and blower fan for efficient active cooling performance.
• Designed specifically for Raspberry Pi 5 to prevent thermal throttling under heavy workloads.
• PWM-controlled fan adjusts speed automatically based on temperature for optimal cooling and low noise.
• Easy installation using spring-loaded push pins for secure mounting.
• Pre-applied thermal pads ensure excellent heat transfer and simplify setup.
• Powered directly via Raspberry Pi 5 fan header, eliminating extra wiring.



  Additional Details:

• Product Type: Active Cooler (Heatsink + Fan)
• Material: Anodised Aluminium
• Cooling Method: Active (Heatsink + Blower Fan)
• Fan Control: PWM with tachometer feedback
• Fan Speed: Up to 8000 RPM (±15%)
• Airflow: Approx. 1.09 CFM
• Power Input: 5V via Raspberry Pi 5 fan header
• Mounting Method: Spring-loaded push pins
• Thermal Interface: Pre-applied thermal pads
• Dimensions: 63.5 × 42.5 mm
• Compatibility: Raspberry Pi 5 only
