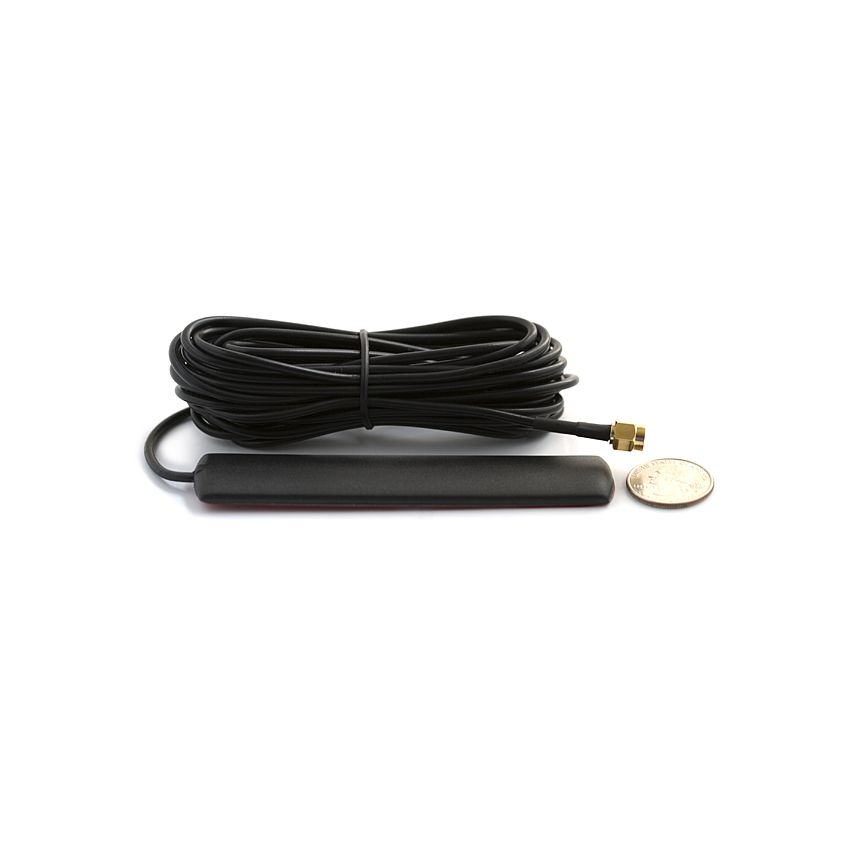

Quad-band Wired Cellular Antenna SMA

Delivery in 2 Weeks.
Pre-Order
Only 16 left
Add to Wish List

Guarantee safe & secure checkout

Description :

A Quad-band antenna for embedded cellular devices. This antenna will allow you to connect your cellular module to the outside world. Operates on four frequencies. Comes with a 3M adhesive backing for mounting. Standard male SMA terminated.



Key Specifications:



Quad-band: 850/900/1800/1900MHz and 2.4GHz
For GSM/GPRS, CDMA/1X, TDMA/AMPs, CDPD, 2 Way pager Re-Flex
Cable with RG174A/U - 3m long
Connector: SMA

Electrical Properties:

Frequency range: 824 ~ 960 MHz // 1710 ~ 1990 MHz

Impedance: 50 Ohm nominal
VSWR: <2.0 : 1
Gain: 3.5dBi
Radiation: Omni
Polarization: Vertical
Wave: Half Wave Dipole

Mechanical Properties:

Size: 115x22x4mm

Connector SMA (Male) standard
Cable: RG174
Cable length: 3m
Over-mold housing: ABS Black
Mounting: Adhesive backing
Operation Temperature: -40 to 85C



More Information
Brand Sparkfun
GTIN 1,
Frequency N/A
