PT06SE10-6SQ-024 CONN PLUG FMALE 6POS GOLD CRIMP

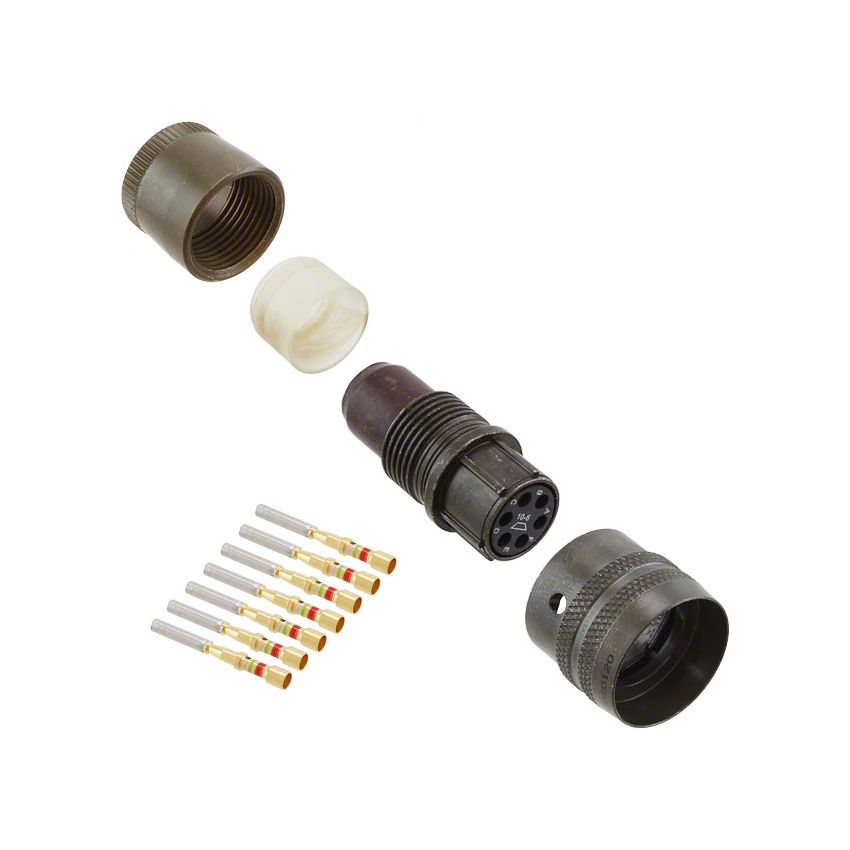

The 6 Position Circular Connector Plug from Amphenol Industrial Operations is a female socket crimp connector designed for use in harsh environments. It is part of the MIL-DTL-26482 Series I, PT connector series and has 6 positions with a shell size of 10-6. The connector is free-hanging (in-line) and features a bayonet lock for secure and easy mating.



The primary material of the connector is metal, with an aluminum shell material finished in olive drab chromate over cadmium. The connector is environment sealed for ingress protection and is unshielded. It has a current rating of 7.5A and can operate in temperatures ranging from -55°C to 125°C.



The contact finish for mating is gold, and the contact material is copper alloy. The insert material is neoprene, providing additional protection against harsh environments. This connector is suitable for use in aerospace, industrial, instrumentation, mass transit, and military applications.
