Specifications:

Product Net Width: 361 mm
Product Net Height: 493 mm
Product Net Depth / Length: 282 mm
Product Net Weight: 25 kg
Rated Operational Voltage: Main Circuit 208 ... 600 V AC
Rated Control Supply Voltage (Us): 100 ... 250 V
Rated Control Circuit Voltage (Uc): DC Operation 24 V
Rated Frequency (f): Main Circuit 50/60 Hz
Rated Operational Power - In-Line Connection (Pe): (400 V) 250 kW
Rated Operational Current - In-Line Connection (Ie): 470 A
Rated Operational Power - Inside Delta Connection: at 400 V 450 kW
Rated Operational Current - Inside Delta Connection: 814 A
Integrated Electronic Overload: Yes
Adjustable Rated Motor Current Ie: 30 ... 100 %
Initial Voltage During Start: 10 ... 99 %
By-pass Signal Relay: Yes
Connecting Capacity Main Circuit: Hole Diameter 8.5 mm
Connecting Capacity Control Circuit: Rigid 1x2.5 mm²

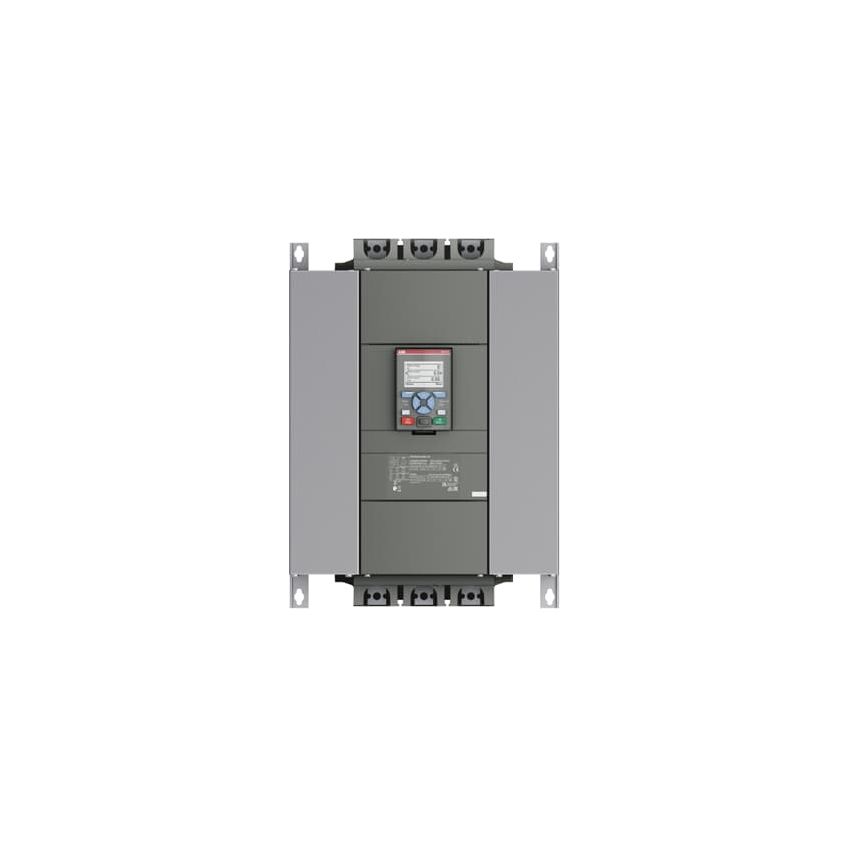

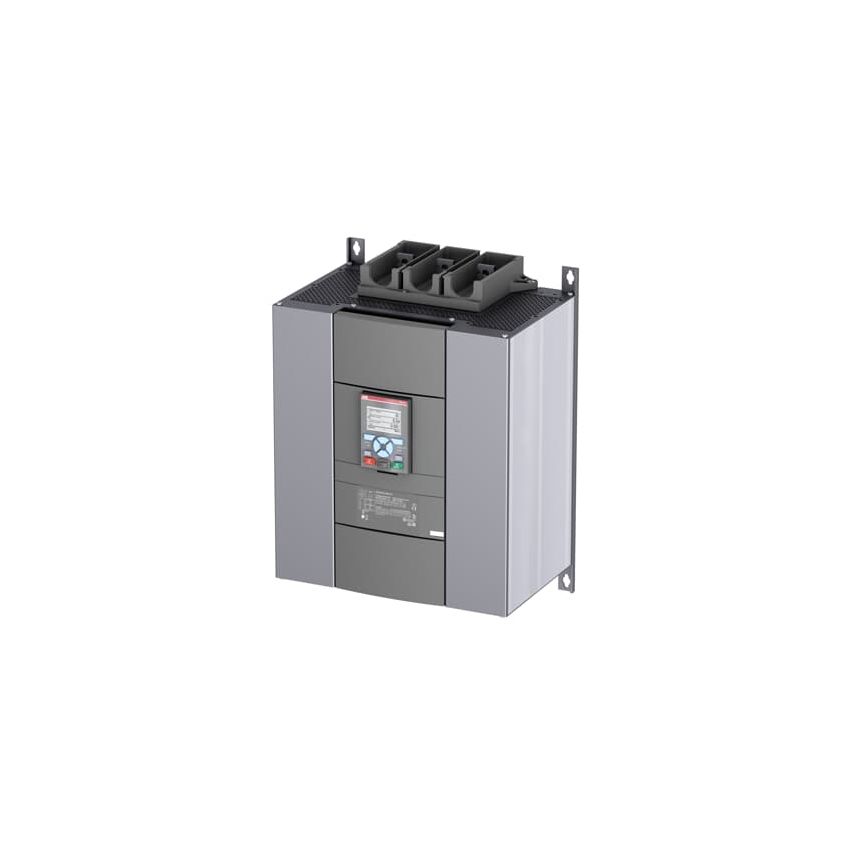

Product Main Type: PSTX470
