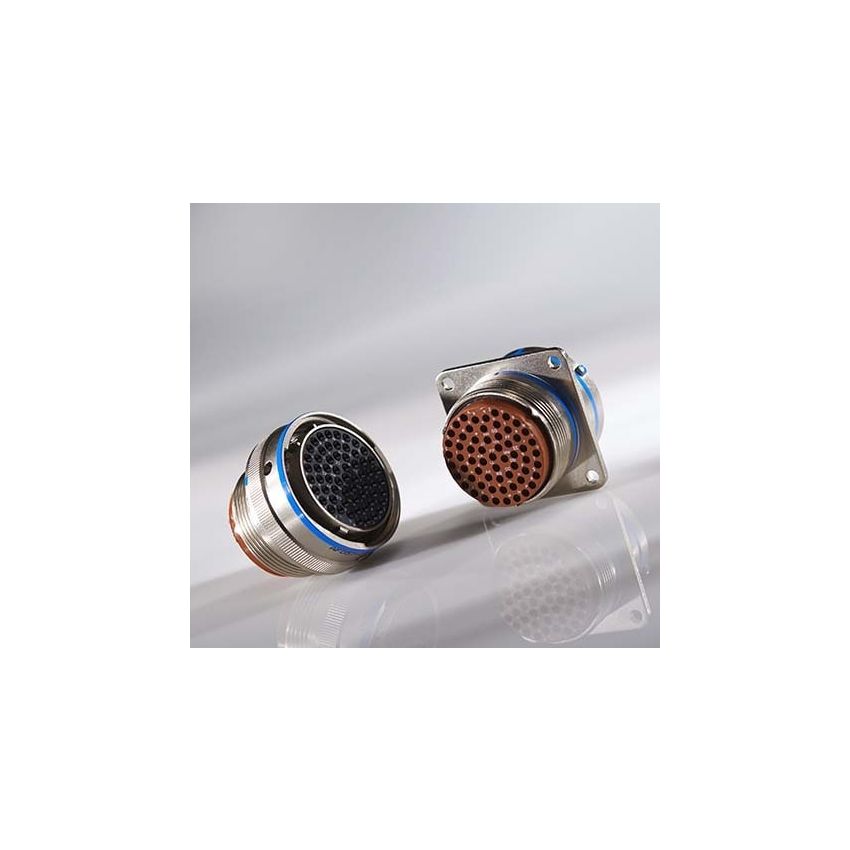

The BM00 (MS3470 type) wall mount receptacle features a four hole flange for panel mounting. Accessory threads on the rear of the connector enable the use of backshells. A cover is recommended to protect contacts when the receptacle is not in use.

Specifications:

Connector type: Bayonet coupling connector

Size: Medium

Environmental resistance: Yes

Operating voltage: Up to 1,000 VAC (RMS) at sea level

Coupling system: 3-point bayonet

Mismating prevention: 5-key/keyway design

Contact insertion/removal: Rear of connector without damaging the front

Grommet material: Tear-resistant elastomer

Grommet degradation: None when exposed to fluids

Sealing: Triple webbed grommet for sealing over a range of wire diameters

Contact qualification: SAE AS39029

Contact crimping: Standard crimp tools per MIL-DTL-22520

Contact coding: BIN coded (three color bands)

Pin side of insert: Lead-in chamfer, hard face, and elastomer interfacial seal with raised barriers for positive moisture seal

Socket side of insert: Lead-in chamfer and hard face that will accept a pin contact bent within pre-established limits

Visual confirmation of coupling: Yes

Recommended applications: Medium-sized connector needs that can withstand harsh environmental conditions.
