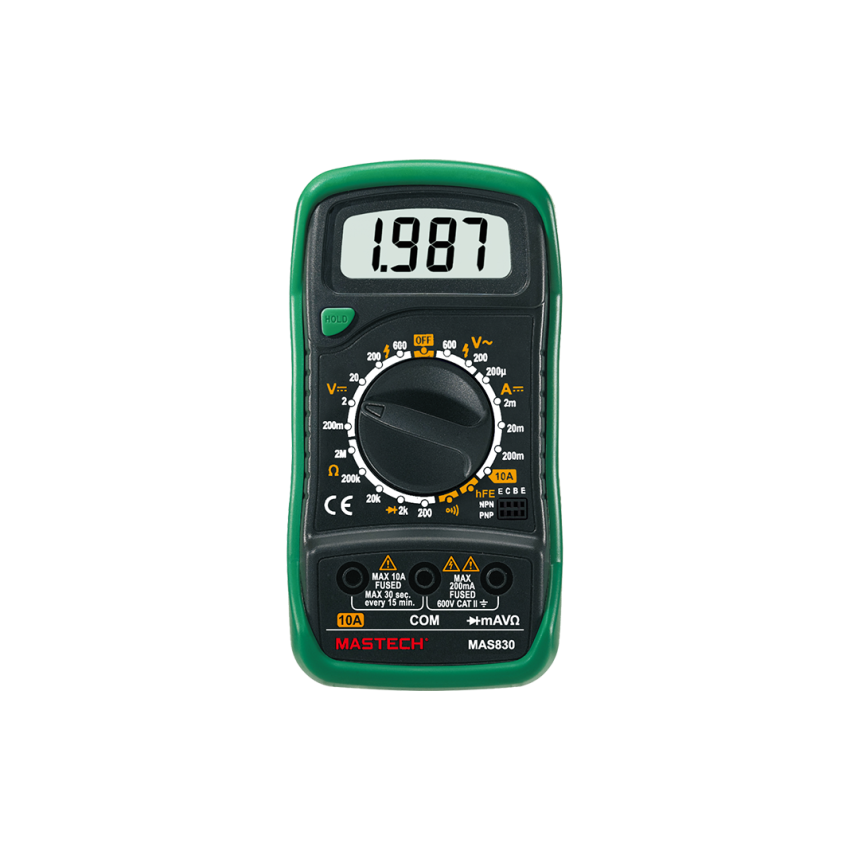

MAS830 - Manual Ranging Digital Multimeter

SKU
TMMI0010
Brand:

Guarantee safe & secure checkout

Sample Rate 500mS
Display 2000 counts
Data Hold
K-Type Thermocouple
Low Battery Display

General:


Power Supply : 1x9V 6F22 Battery
Product Size : 125.5mm x 72mm x 27mm / 5.6" x 2.8" x 1.0"
Product Weight : 145g / 0.30lb
Certificate : RoHS

Specifications:


Range:
•DC Voltage: 200mV/2V/20V/200V, 600V
•AC Voltage: 200V/600V
•DC Current: 20μA, 200μA/2mA, 20mA, 200mA, 10A
•AC Current: 20μA, 200μA/2mA, 20mA, 200mA, 10A
•Resistance: 200Ω, 2kΩ/20kΩ/200kΩ, 2MΩ
Resolution:
•DC Voltage: 0.1mV/1mV/10mV/0.1V, 1V
•AC Voltage: 0.1V/1V
•DC Current: 0.01μA, 0.1μA/1μA, 10μA, 0.1mA, 10mA
•AC Current: 0.01μA, 0.1μA/1μA, 10μA, 0.1mA, 10mA
•Resistance: 0.1Ω, 1Ω/10Ω/0.1kΩ, 1kΩ
Accuracy:
•DC Voltage: ±(0.5% 3), ±(0.8% 5)
•AC Voltage: ±(1.2% 10)
•DC Current: ±(1.0% 3), ±(1.0% 3), ±(1.0% 5), ±(1.5% 5), ±(3.0% 10)
•AC Current: ±(1.0% 3), ±(1.0% 3), ±(1.0% 5), ±(1.5% 5), ±(3.0% 10)
•Resistance: ±(0.8% 5), ±(0.8% 2), ±(1.0% 5)
