LM393 5 Channel Flame Sensor

SKU
STSx0026
Brand
In stock
Add to Wish List

Guarantee safe & secure checkout

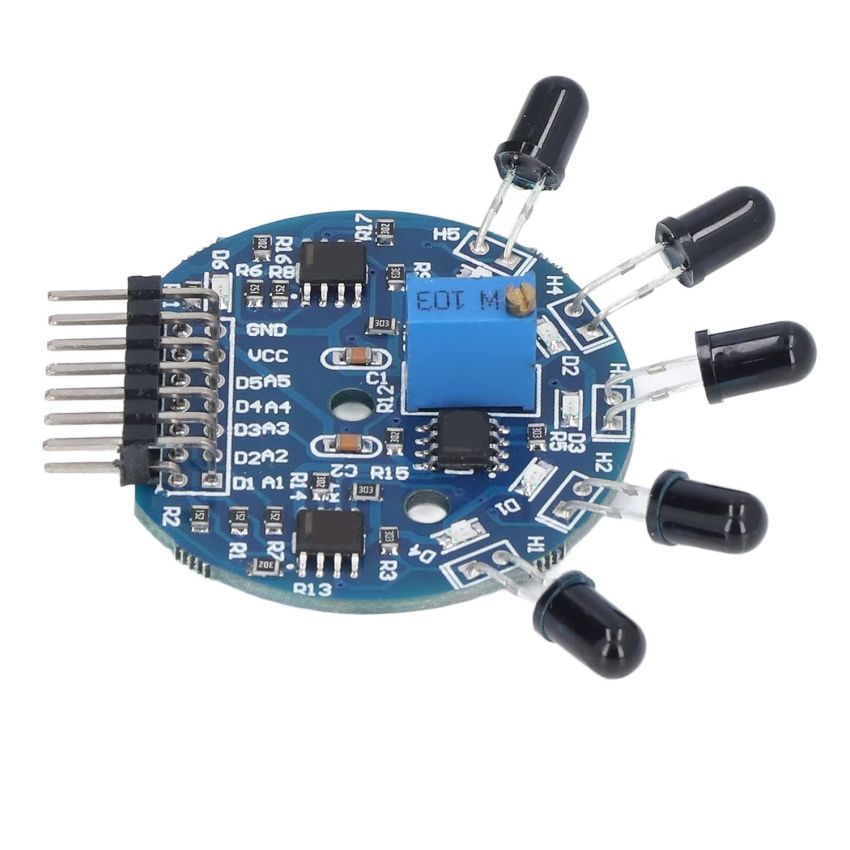

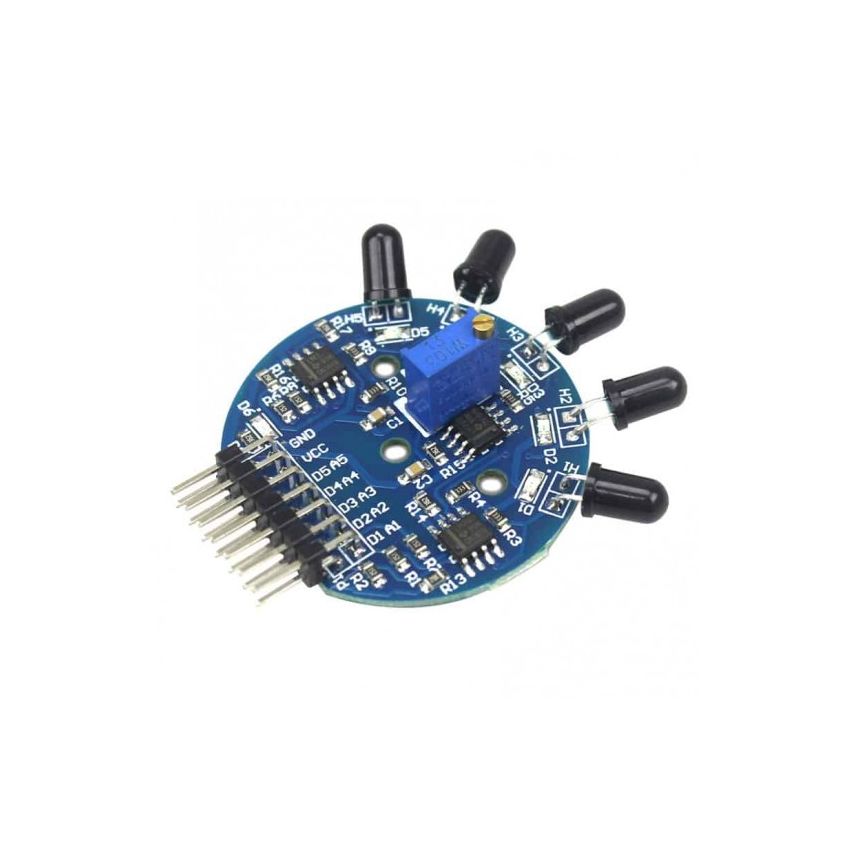

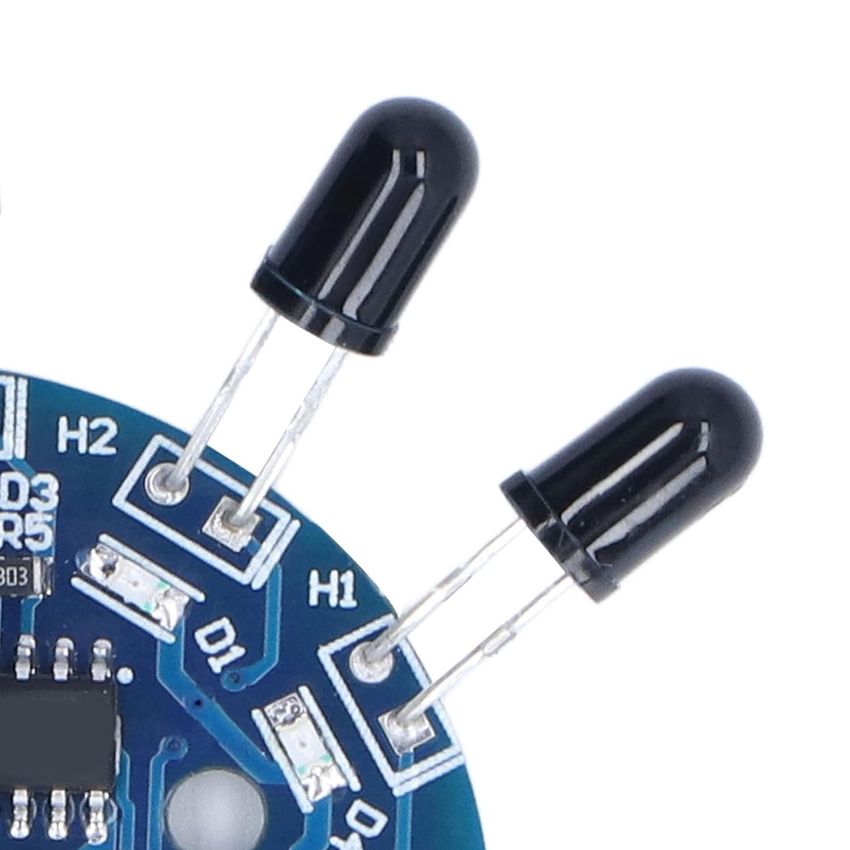

The Flame Detection Sensor Module is designed to detect flames over a broad range (>120 degrees) using five independent sensors arranged with 30 degrees of separation. It recognizes fire by detecting flame bands in the range of 700-1100 nm, short-wave near-infrared (SW-NIR) and triggers an output via an electric signal.

Features:

Supply Voltage: 3.3V - 9V DC
Outputs: 5 Analog and 5 Digital
Adjustments: On-board potentiometer for adjusting sensitivity
Indicator LEDs: Five (one on each channel) and one power indicator
Frequency: 760 nm to 1100 nm
Detection Area: >120 degrees at approximately 80cm
Working Principle:

The sensor detects flame bands in the range of 700-1100 nm, short-wave near-infrared (SW-NIR) and triggers an output via an electric signal when sensed.

Mounting:

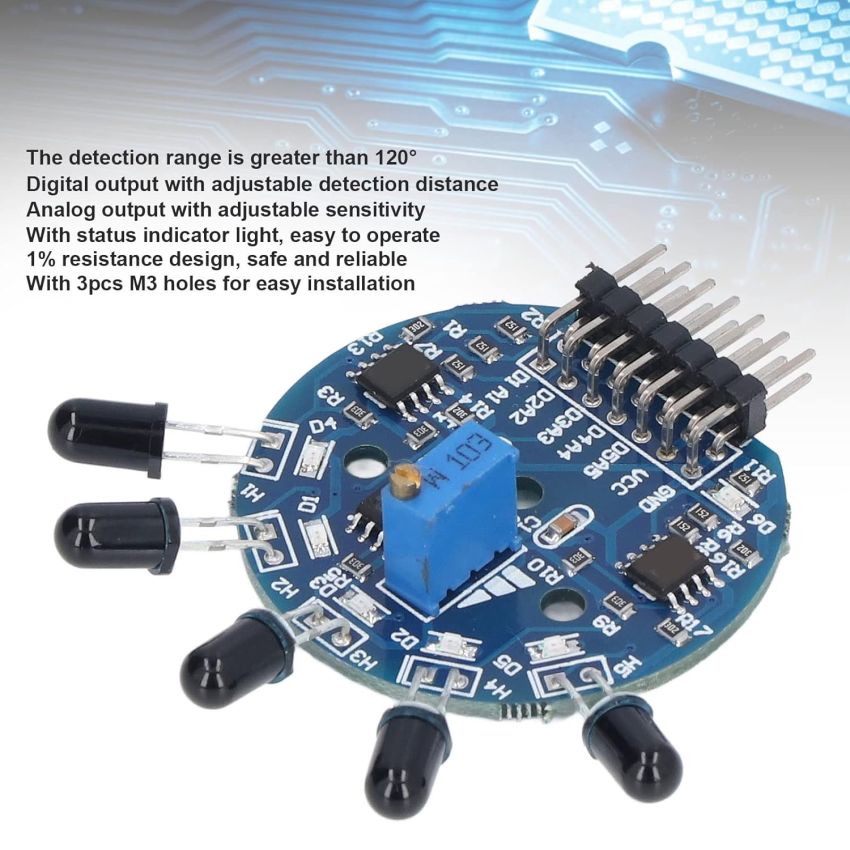

The sensor board is mounted using three M3 mounting holes for easy installation.

Specifications:

Supply Voltage: 3.3V - 9V DC
Outputs: 5 Analog and 5 Digital
Adjustments: On-board potentiometer for adjusting sensitivity
Indicator LEDs: Five (one on each channel) and one power indicator
Frequency: 760 nm to 1100 nm
Detection Area: >120 degrees at approximately 80cm

More Information
Brand Besomi
GTIN 1,
Current Consumption N/A
