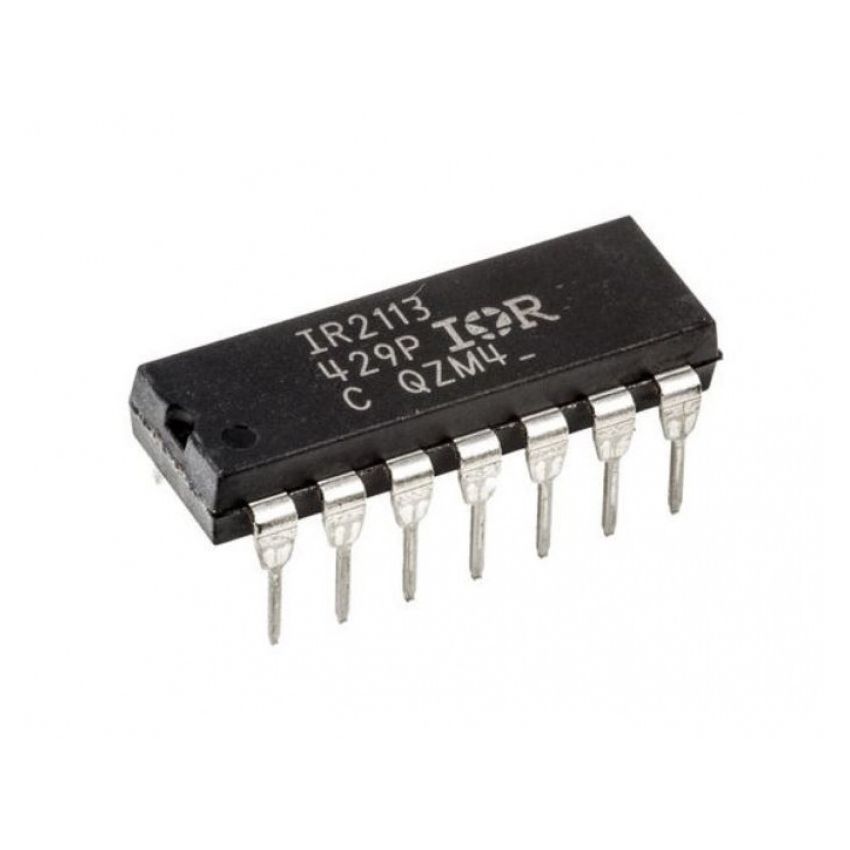

IR2113 - DIP,High and Low-Side Gate Driver IC,600V,2A,20V

SKU
SCIx1073
Brand
In stock
Add to Wish List

Guarantee safe & secure checkout

The IR2113 DIP is a high-voltage, high-speed power MOSFET and IGBT driver that includes independent high-side and low-side output channels. With a maximum voltage rating of 600V and an output current of 2A, this driver is optimized for driving N-channel power MOSFETs or IGBTs in high-side configurations. It features undervoltage lockout for both channels, ensuring reliable operation in demanding applications such as motor control, power supplies, and DC-DC converters.

The DIP package allows for easy through-hole assembly, making it ideal for various industrial, automotive, and consumer electronics projects. Its logic compatibility from 3.3V to 20V ensures integration with a wide range of microcontrollers and logic circuits. The IR2113 is built to operate in harsh environments, with its shutdown logic and matched propagation delay providing reliable high-frequency operation.

Key Features :
  • High-voltage, high-speed power MOSFET and IGBT driver with independent high and low-side channels.
  • Tolerant to negative transient voltages and designed for bootstrap operation, operating up to 600V.
  • Offers high current capability with 2A output current for reliable power switching.
  • Supports logic-level compatibility from 3.3V up to 20V, making it versatile for different logic families.
  • Comes in a DIP package, making it ideal for through-hole PCB assembly, ensuring easy integration.
  • Matched propagation delay for both channels, simplifying high-frequency applications.
More Information
Brand Generic
GTIN 1,
IC type N/A
