Description :

  • Hobby Motor and Encoder Kit from DAGU
    Includes three pairs of items: wheels, gearmotors, and wheel encoders
    Perfect for beginners or as extra parts for your next project
    Offset gear motors require a voltage of 3-6V, no load current of 200mA, stall current of 3A@6V (1.5A@3V)
    Gearbox ratio of 48:1, wheel speed of 65RPM at 3V unloaded
    Wheel encoders require a supply voltage of 3-24V, supply current of 4mA
    Consists of two neodymium 8-pole magnets with rubber hubs and two hall-effect sensors
    Terminated with 150mm cables and 3-pin female servo headers

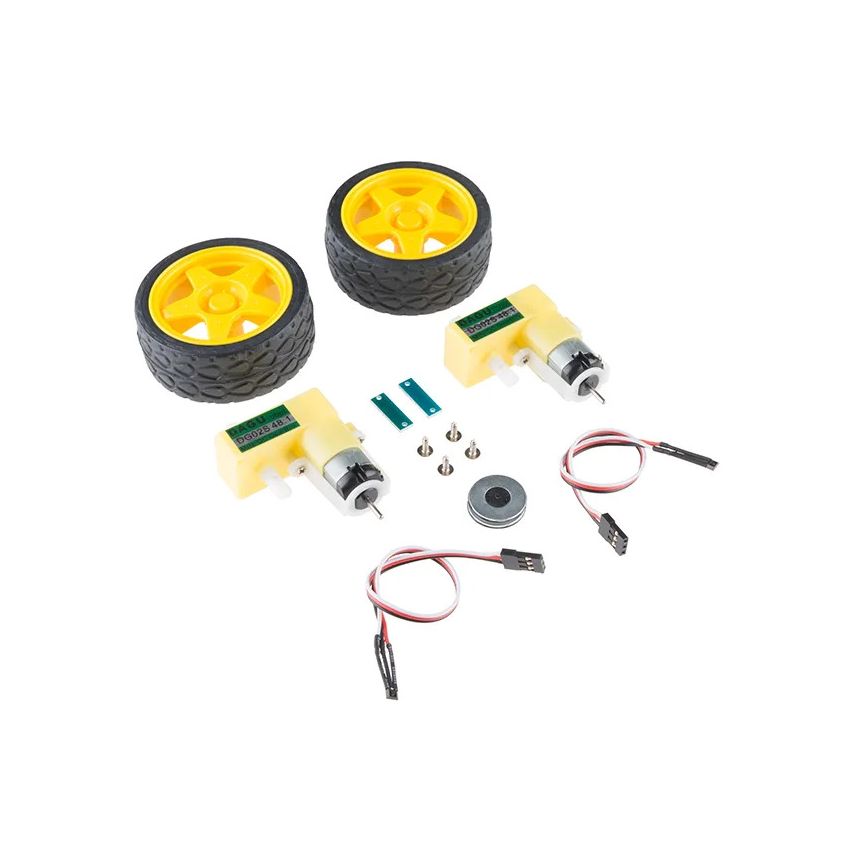

The kit includes:

  • 2x DG02S Mini DC Gear Motor:
    •2x Wheel - 65mm
    •1x Wheel Encoder Kit (Set of 2)



Specifications:

  • -Gear Motor:
    •Voltage: 3V – 6V
    •No Load Current: 200mA
    •Stall Current: 3A @ 6V (1.5A @ 3V)
    •Gearbox Ratio: 48:1
    •Wheel Speed: 65rpm @ 3V unloaded (Recommended)
    -Wheel Encoder:
    •Voltage: 3V – 24V with reverse polarity protection
    •Encoder Type: 8-pole neodymium magnet and hall-effect sensor
    •Encoder Output: Open drain with short circuit protection
