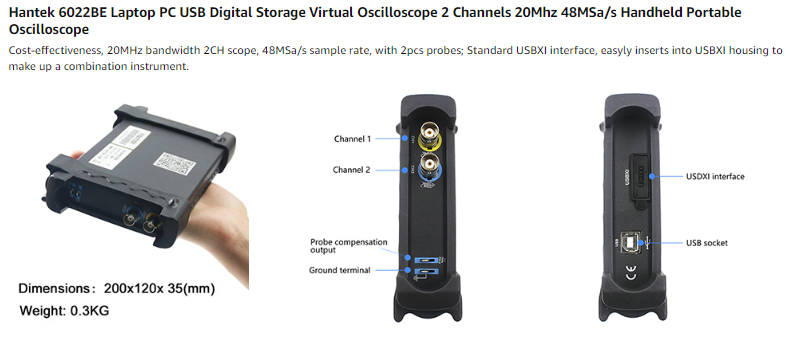

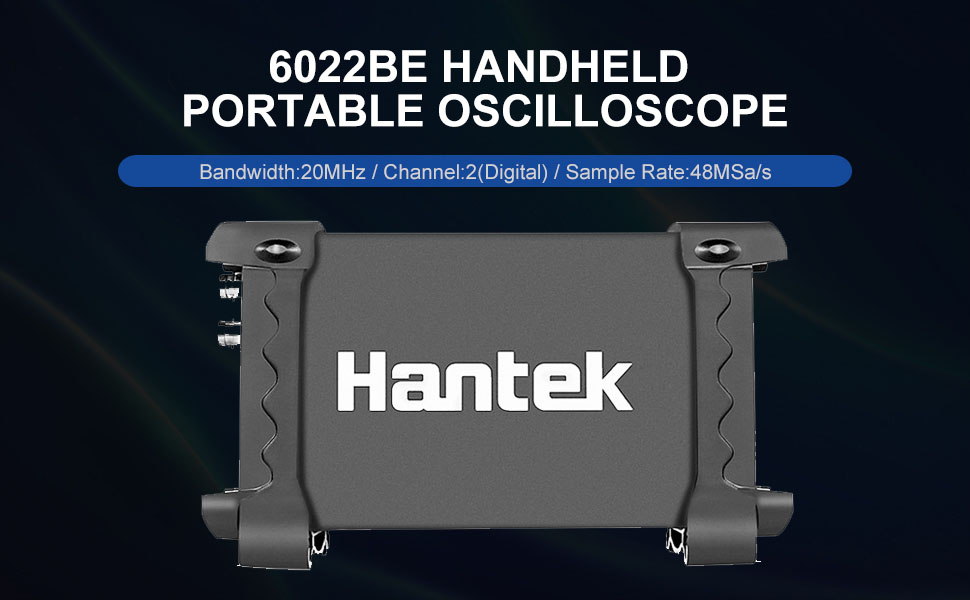

Hantek6022BE - PC USB Oscilloscope

The Hantek PC-Based USB Digital Storage Oscilloscope is designed with a sleek anodized aluminum casing, similar to the iPad, which not only looks stylish but also adds durability and heat resistance. The oscilloscope is equipped with a standard USBXITM interface, making it easy to insert into the USBXITM housing to create a combined instrument. The USB 2.0 interface means that no external power source is required, making it easy to use with a laptop computer or for product line maintenance.

With dimensions of 205mm x 120mm x 35mm, the oscilloscope is portable and can be carried easily. It has high performance, with 250MS/s real-time sampling and a bandwidth range of 20MHz-80MHz. It is compatible with operating systems such as Windows 10, Windows 8, Windows 7, Windows NT, Windows XP, and VISTA.

This oscilloscope is suitable for technical applications, with 23 measurement functions, PASS/FAIL Check, and waveform display features such as average, persistence, intensity, invert, addition, subtraction, multiplication, division, and X-Y plot. Waveforms can be saved in text files, jpg/bmp graphic files, or MS excel/word files. FFT functionality is also included.

One computer can connect to many DSO units, making it easy to extend channel capacity. The oscilloscope is compatible with software such as Labview, VB, and VC for second design instance. Overall, this Hantek PC-Based USB Digital Storage Oscilloscope is a powerful and versatile tool for any electronic engineer or technician.

Specifications:

• Model: Hantek6022BE
• Channels: 2 channels
• Bandwidth: 20MHz
• Input Impedance: 1MΩ 25pF
• Max. Sample rate: 48MS/s
• Coupling: DC
• Vertical resolution: 8-bit
• Gain range: 20mV-5V
• DC accuracy: ±3%
• Timebase range: 4ns-5ks
• Vertical adjustable: Yes
• Input protection: Diode clamping
• X-Y: Yes
• EXT. input: No
• Trigger Mode: Auto, Normal and Single
• Trigger Slope: /-
• Trigger level adjustable: Yes
• Trigger Type: Rising edge, falling edge
• Trigger Source: CH1, CH2
• Pre/Post trigger: 0-100%
• Buffer size: 1M
• Sampling selection: Yes
• Waveform Display: port/line, waveform average, persistence, intensity
• Network: Open/Close
• Vertical mode: CH1, CH2, Dual, ADD
• Cursor measurement: Yes
• Math: FFT, addition, subtraction, multiplication, division.
• Cursor: Frequency, Voltage
• Accessories: S/W CD, probes, manual, USB cord
