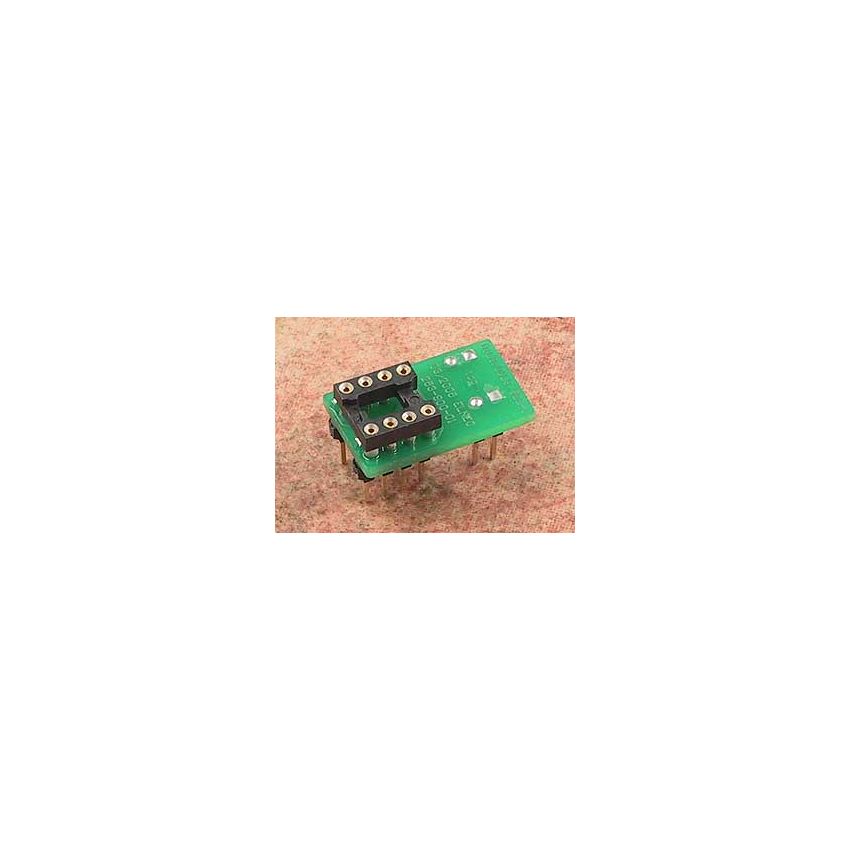

DIL8/DIL8 SEE-1

The special adapter is designed for SEEPROM devices with a rotate pinout (for use with a universal adapter). It is made in Slovakia and identified by Ord. no. 70-0253.



The socket used in this adapter is a DIL8 type, which allows for easy insertion and removal of SEEPROM devices with a rotate pinout. However, it should be noted that the socket has a limited operational life of 50 actuations, meaning that it may not be suitable for frequent or repeated use.



The bottom board of the adapter features 2 rows of 2x4 pins, with an additional 2x2 pins for improved stability. The pins are arranged in a square pattern with a pitch of 0.6x0.6mm (300 mil) row spacing. This configuration allows for convenient connection to SEEPROM devices with a rotate pinout using the universal adapter.



This special adapter, with a DIL8 socket, 2 rows of 2x4 pins (plus 2x2 pins for improved stability), and a pitch of 0.6x0.6mm (300 mil) row spacing, is designed for use with SEEPROM devices with a rotate pinout. However, due to the limited operational life of the socket (50 actuations), it is recommended for occasional or infrequent use. It is made in Slovakia and identified by Ord. no. 70-0253.
