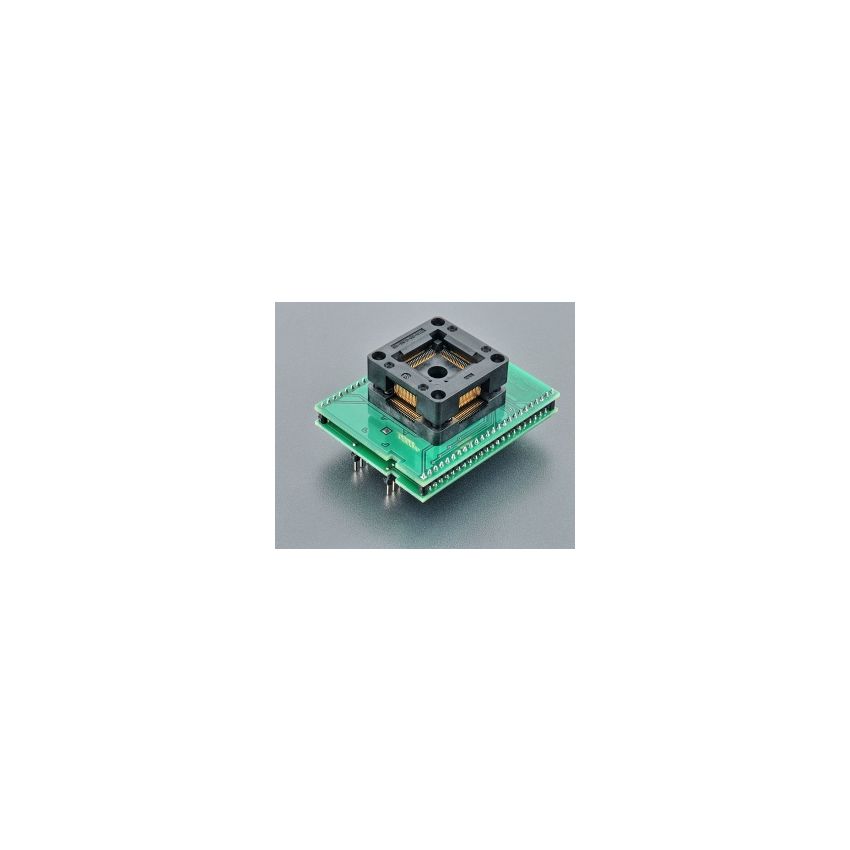

DIL48/QFP80-1 ZIF HCS08-1

The special adapter is designed specifically for the Motorola MC9S08xxx and MCF51xxx family of microcontrollers in LQFP80 package, providing a reliable and efficient solution for programming and testing these devices. The adapter is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this adapter is 70-0933, which can be used for easy identification and ordering.



The ZIF (Zero Insertion Force) socket of the adapter comes with a mechanical warranty of 10,000 actuations, providing durability and long-term use. The open-top type design of the ZIF socket allows for easy insertion and removal of the microcontrollers, making it convenient for programming and testing purposes.



The bottom board of the adapter features 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This ensures a reliable connection to the Motorola MC9S08xxx and MCF51xxx family of microcontrollers in LQFP80 package, enabling accurate operations during programming and testing.
