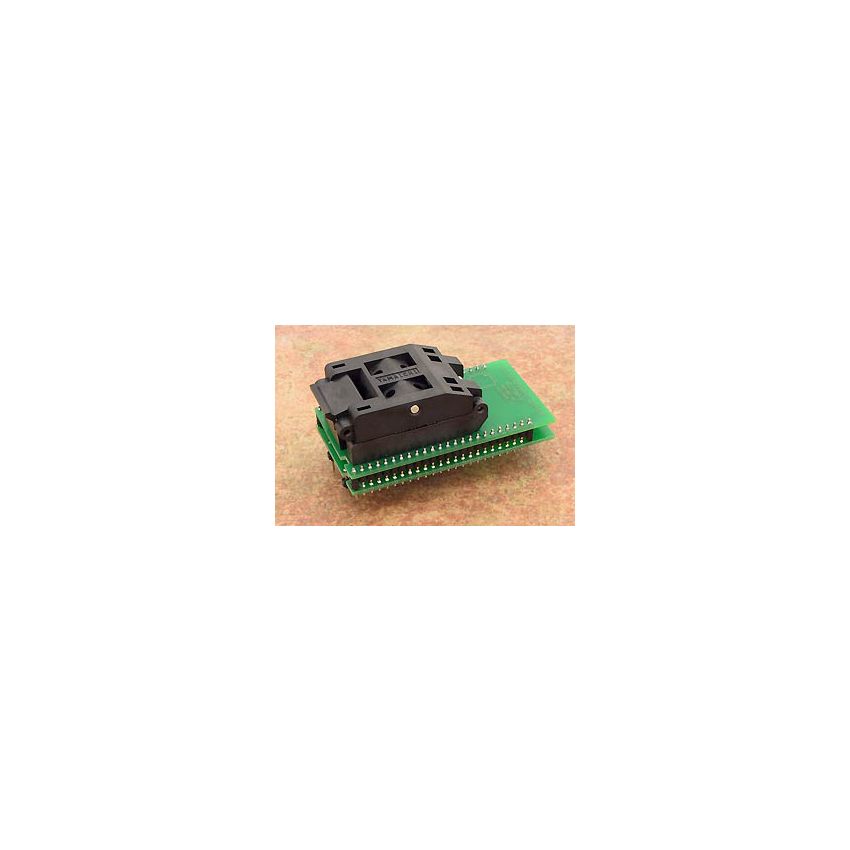

DIL48/QFP64-1 ZIF-CS NEC78K-1

The special adapter with Ord. no. 70-0392 is specifically designed for use with NEC uPD78P014 and uPD78P018 microcontrollers in QFP64 package. It is made in Slovakia, ensuring high-quality manufacturing processes and materials.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, providing reliable and durable performance during programming or testing operations. The ZIF socket is of ClamShell type, which allows easy insertion and removal of the microcontroller without the need for any additional tools.



The adapter is designed to accommodate QFP64 packages, which have 64 pins in a quad flat package configuration with a fine pitch of 0.6x0.6mm. The bottom board of the adapter has 2 rows of 2x24 pins each, arranged in a square pattern with a rows spacing of 600mil. These pins are designed to connect to the corresponding pins on the bottom side of the QFP64 package, providing a secure and reliable connection.



The Ord. no. 70-0392 serves as a unique identifier for this specific adapter, making it easy to identify and track in a professional environment. Please note that this adapter is designed specifically for use with NEC uPD78P014 and uPD78P018 microcontrollers in QFP64 package, and may not be suitable for other devices or package configurations. It is important to verify the compatibility of the adapter with the specific microcontroller you intend to use before proceeding with programming or testing operations.
