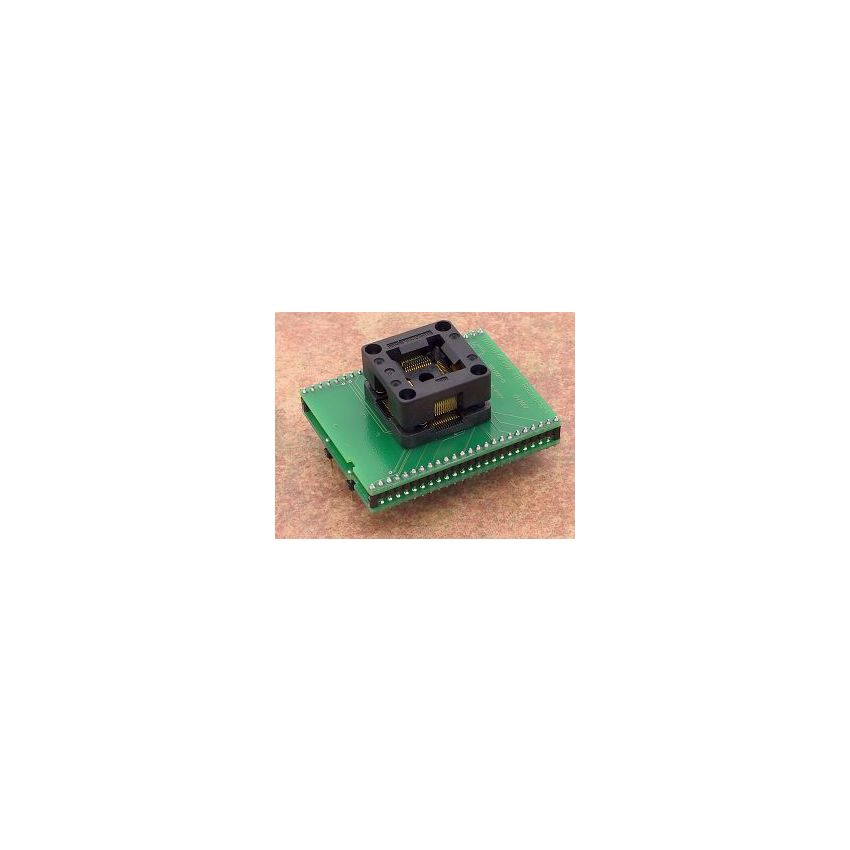

DIL48/QFP52 ZIF R8C/Tiny-1

The special adapter with order number 70-0701 is designed specifically for the Renesas (Hitachi) R8C/Tiny family of devices in a QFP52 package. This adapter provides a reliable solution for programming and testing the R8C/Tiny devices during development and production processes.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP52 package with an OpenTop type design, providing ease of use and efficient programming and testing of the R8C/Tiny devices. The ZIF socket has a mechanical warranty of 10,000 actuations, ensuring durability and long-term reliability.



The bottom board of the adapter features 2 rows of 2x24 pins in a square configuration, with a pin pitch of 0.6x0.6mm and row spacing of 600mil. This configuration is specifically designed for compatibility with the Renesas (Hitachi) R8C/Tiny devices, ensuring precise and secure connections for programming and testing purposes.



The adapter is made in Slovakia to high manufacturing standards, ensuring quality and reliability. The order number for this special adapter is 70-0701, and it is designed specifically for use with the Renesas (Hitachi) R8C/Tiny family of devices in a QFP52 package.
