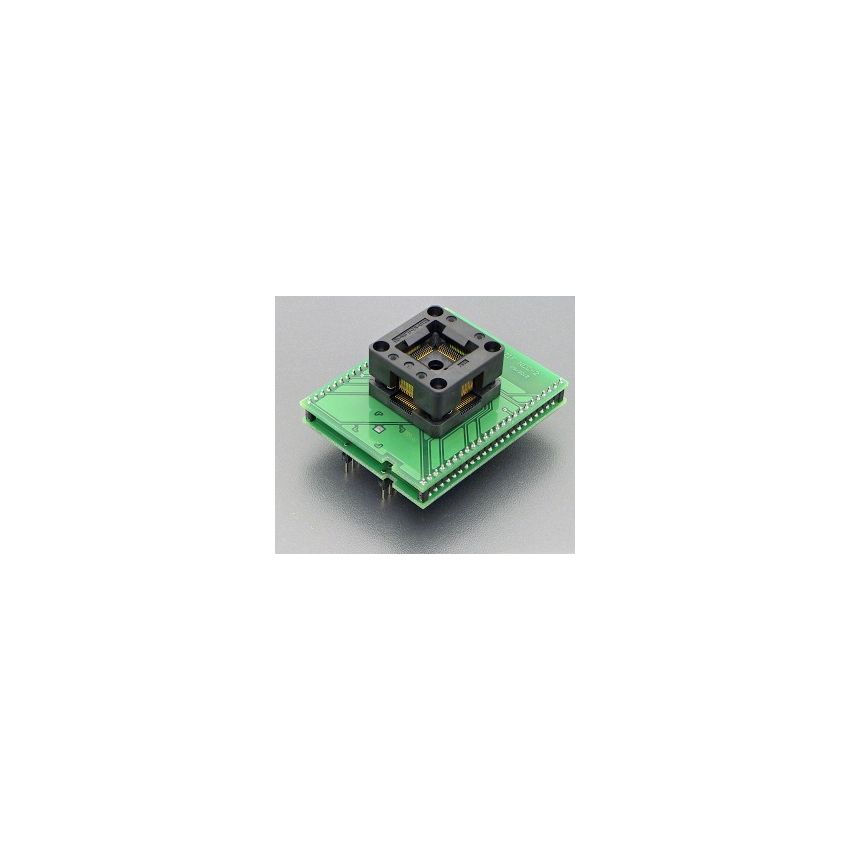

DIL48/QFP52 ZIF NEC-2

The special adapter with Ord. no. 70-1043 is designed for use with NEC uPD78F0034BS, uPD78F012xH, and 78F0124HD devices in a LQFP52 (Low-profile Quad Flat Package) package. It features a ZIF (Zero Insertion Force) socket that is of the OpenTop type, allowing for easy insertion and removal of the LQFP52 package without the need for additional tools.



The ZIF socket on this special adapter is designed with a mechanical warranty of 10,000 actuations, indicating its durability and reliability in repeated usage. It is made in Slovakia, ensuring quality manufacturing standards.



The special adapter is compatible with devices with serial numbers (s/n) from 1043-00013, and is supported from PG4UW software version 3.76. It is important to note this compatibility information for proper usage with the intended devices.



The bottom board of the adapter features 2x24 square pins with a size of 0.6x0.6mm and a row spacing of 600mil. These pins are designed to provide proper alignment and electrical connectivity between the adapter and the devices being tested or programmed.
