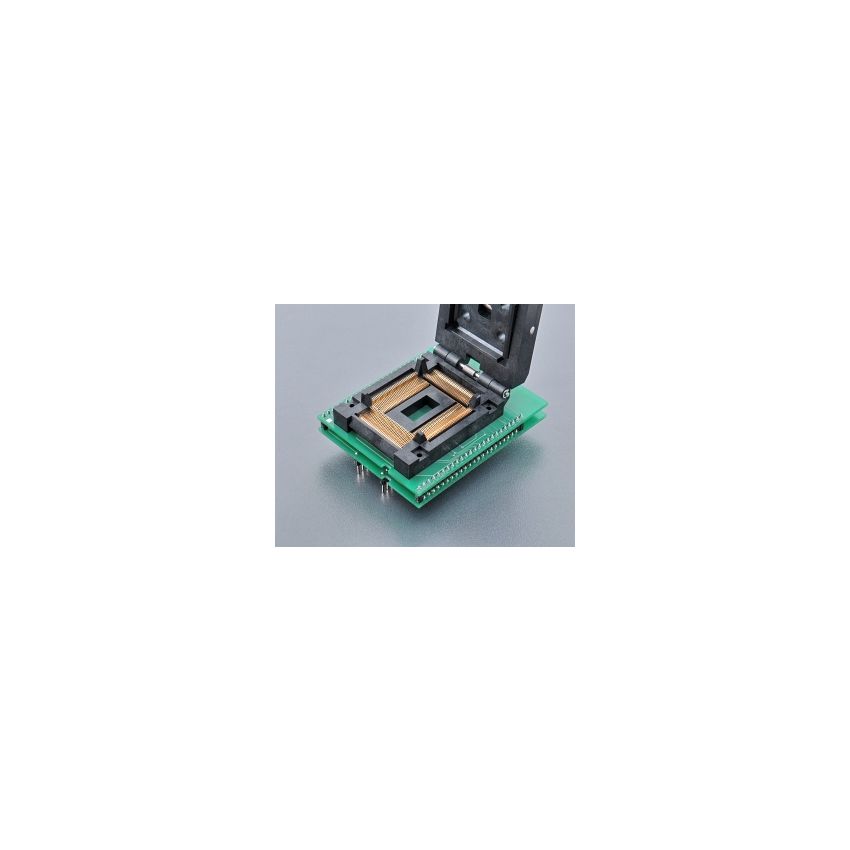

DIL48/QFP160 ZIF-CS PLD-1

The special adapter is designed for CPLD devices Xilinx XC9500 in PQFP160 package, providing a convenient solution for testing or programming these devices. The ZIF (Zero Insertion Force) socket on the adapter is of Clamshell type, which allows for easy insertion and removal of the PQFP160 package with a clamshell mechanism that securely holds the device in place. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring durability and reliability during repeated usage.



The special adapter is made in Slovakia, known for its high-quality manufacturing standards, and has an order number of 70-0959 for easy identification and ordering. The bottom of the adapter features 2x24 pins arranged in a square configuration with a size of 0.6x0.6mm and row spacing of 600mil, providing a reliable and robust connection to the target device.



This special adapter is specifically designed for CPLD devices Xilinx XC9500 in PQFP160 package and is made in Slovakia with an order number of 70-0959. It features a ZIF QFP160 Clamshell socket with an operating (mechanical) warranty of 10,000 actuations, and a bottom connection with 2x24 pins in a square configuration of 0.6x0.6mm, making it a reliable and convenient solution for testing or programming Xilinx XC9500 devices.
