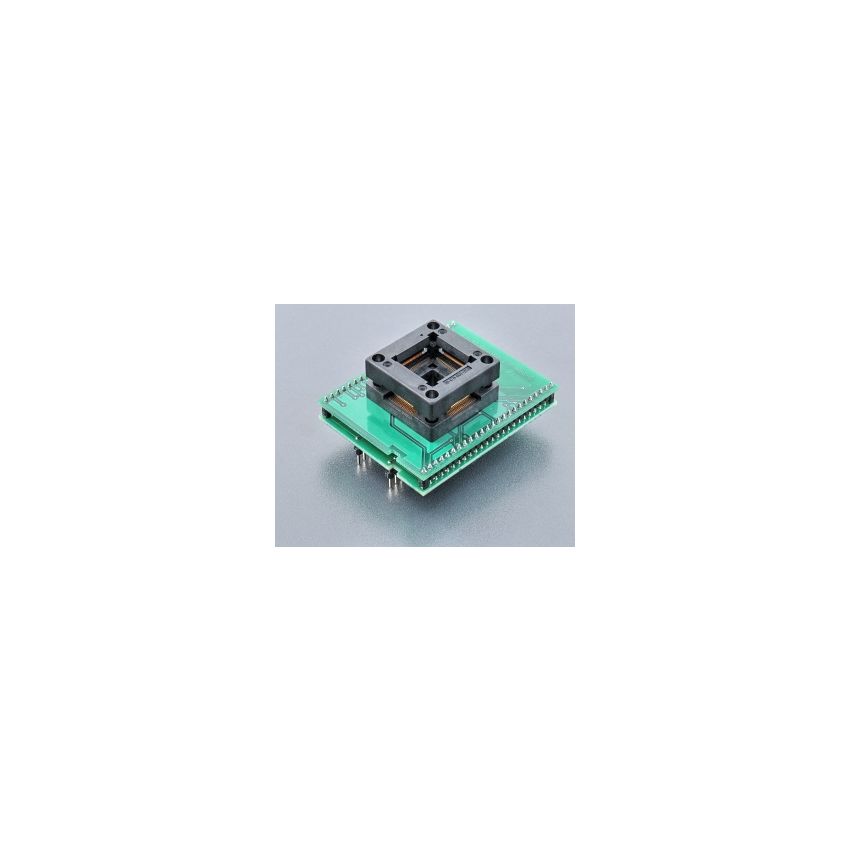

DIL48/QFP100 ZIF H8S-5

The special adapter is designed for Renesas (Hitachi) H64F223x and HD64F225x microcontrollers in QFP100 (Quad Flat Package) package. This adapter provides a reliable solution for programming and testing Renesas (Hitachi) microcontrollers. It is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring durability and performance. The order number for this adapter is 70-0940, which can be used for easy identification and ordering.



The ZIF (Zero Insertion Force) socket of the adapter comes with a mechanical warranty of 10,000 actuations, providing durability for repeated use. The open-top type design of the ZIF socket allows for easy insertion and removal of the microcontrollers, making it convenient for programming and testing purposes.



The bottom board of the adapter features 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This ensures a reliable connection to Renesas (Hitachi) H64F223x and HD64F225x microcontrollers in QFP100 package, enabling accurate operations during programming and testing.
