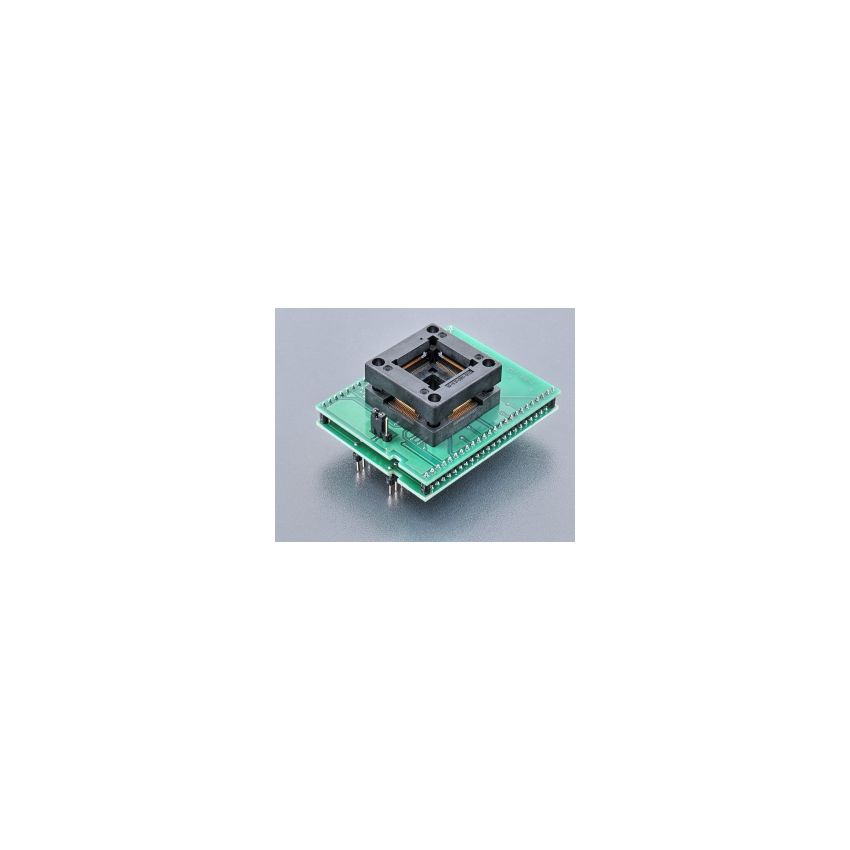

DIL48/QFP100-1 ZIF H8-1

The special adapter is designed specifically for Renesas (Hitachi) HD64F302x, HD64F304x, HD64F305x, HD64F306x devices in a QFP100/TQFP100 package. It is made in Slovakia, known for its high-quality manufacturing standards. The order number for this adapter is 70-0950, which can be used for easy identification and ordering.



The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring reliable and durable performance during programming and testing. The socket is of OpenTop type, providing easy access for device insertion and removal.



The bottom of the adapter has 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This allows for accurate alignment and connection to the Renesas (Hitachi) HD64F302x, HD64F304x, HD64F305x, HD64F306x devices in a QFP100/TQFP100 package.
