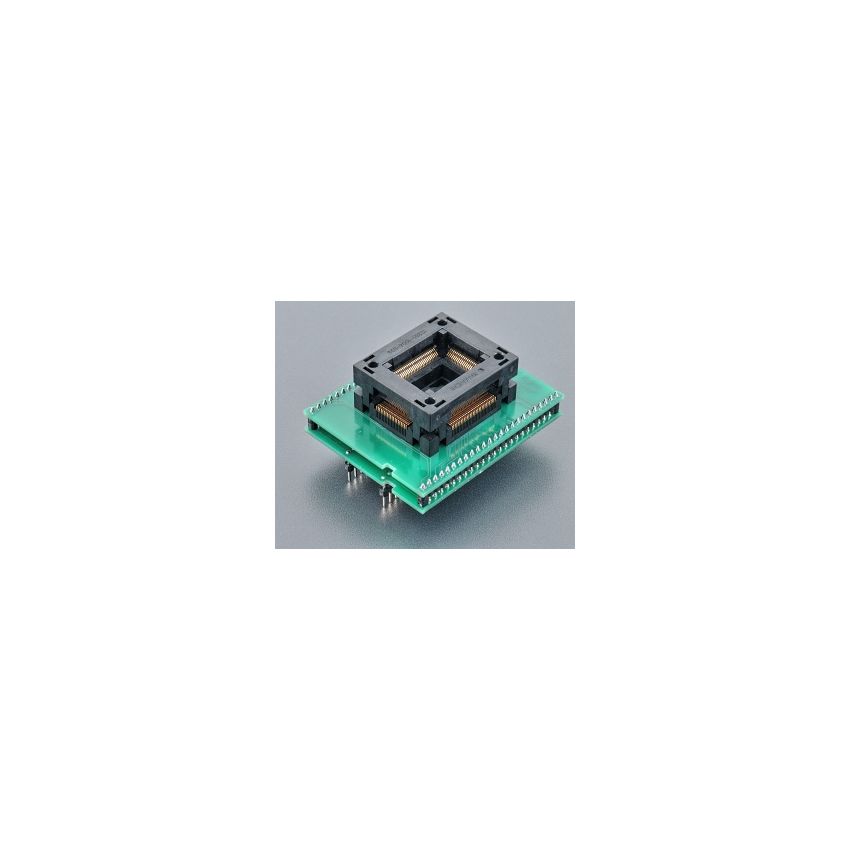

DIL48/PQFP100 ZIF PLD-1

The special adapter is specifically designed for programming and testing Xilinx XC9500 CPLD (Complex Programmable Logic Device) devices that are packaged in PQFP100 (Plastic Quad Flat Package) package. It provides a convenient solution for programming and testing these Xilinx CPLD devices.



The special adapter features a ZIF (Zero Insertion Force) socket with a QFP100 OpenTop type design, allowing for easy insertion and removal of the Xilinx CPLD device during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Xilinx XC9500 CPLD devices in PQFP100 package, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0133. It provides a reliable solution for programming and testing Xilinx XC9500 CPLD devices in PQFP100 package, offering durability, ease of use, and a high operating (mechanical) warranty for prolonged use.
