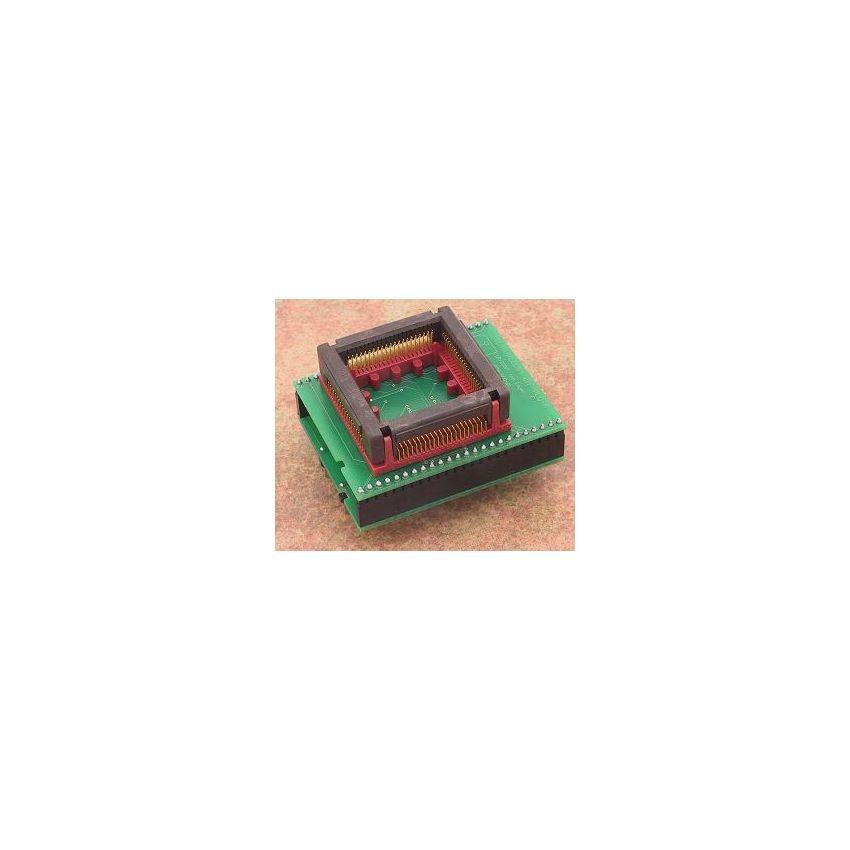

DIL48/PLCC84 ZIF PLD-6

The special adapter is designed specifically for CPLD (Complex Programmable Logic Device) devices, specifically Altera MAX 9000 with JAM/SVF support, in PLCC84 packages. It is manufactured in Slovakia and has an order number of 70-0828. The adapter features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 10,000 actuations, ensuring reliable and durable performance over repeated usage.



The ZIF socket on the adapter is of the OpenTop type, providing easy insertion and removal of the PLCC84 devices without requiring excessive force. The bottom board of the adapter has 2 rows of 2x24 pins each, arranged in a square pattern with a pin pitch of 0.6x0.6mm and a row spacing of 600mil. This configuration allows for seamless connection to Altera MAX 9000 CPLD devices with JAM/SVF support, providing a specialized solution for programming and testing.



The special adapter is designed to provide a reliable interface for programming and testing Altera MAX 9000 CPLD devices with JAM/SVF support in PLCC84 packages. Its durable construction and ZIF socket with a high mechanical warranty ensure long-lasting performance and repeated use without compromising on reliability. It is a valuable tool for electronic engineers and technicians working with Altera CPLD devices, making programming and testing operations efficient and hassle-free.
