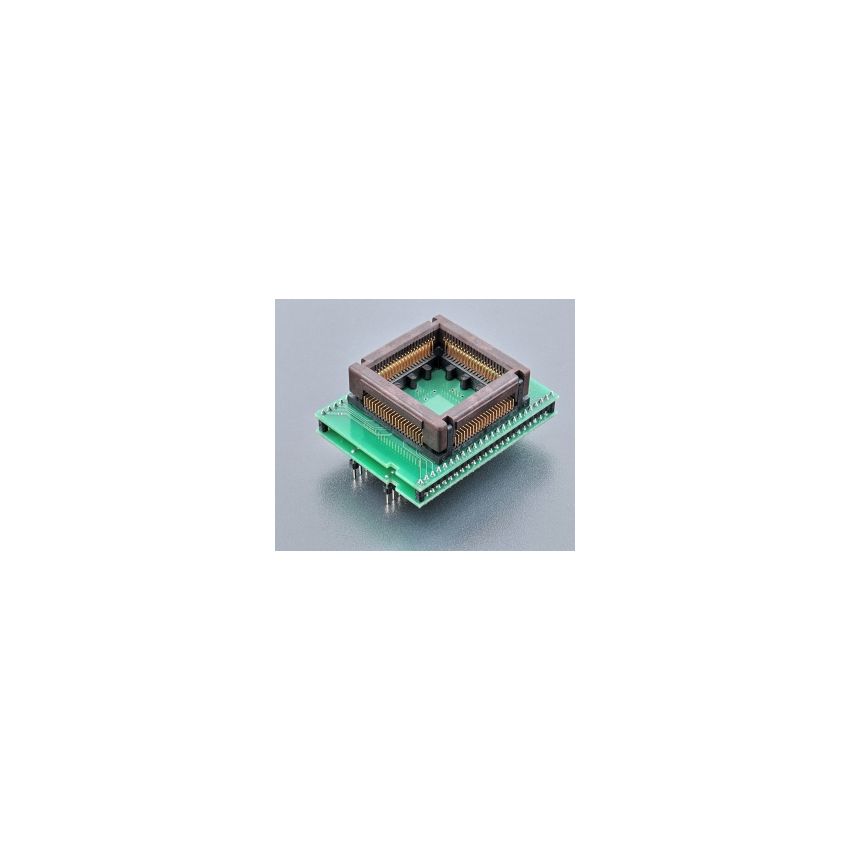

DIL48/PLCC84 ZIF PLD-3

The special adapter is designed specifically for programming and testing CPLD (Complex Programmable Logic Device) devices such as AMD/Vantis/Lattice MACH13x, MACH23x, MACH435, and Cypress CY37000, which come in PLCC84 (Plastic Leaded Chip Carrier) package. It provides a convenient solution for programming and testing these CPLD devices.



The special adapter features a ZIF (Zero Insertion Force) socket with a PLCC84 OpenTop type design, allowing for easy insertion and removal of the CPLD device during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for CPLD devices in PLCC84 package, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0128. It provides a reliable solution for programming and testing AMD/Vantis/Lattice MACH13x, MACH23x, MACH435, and Cypress CY37000 CPLD devices in PLCC84 package, offering durability, ease of use, and a high operating (mechanical) warranty for prolonged use.
