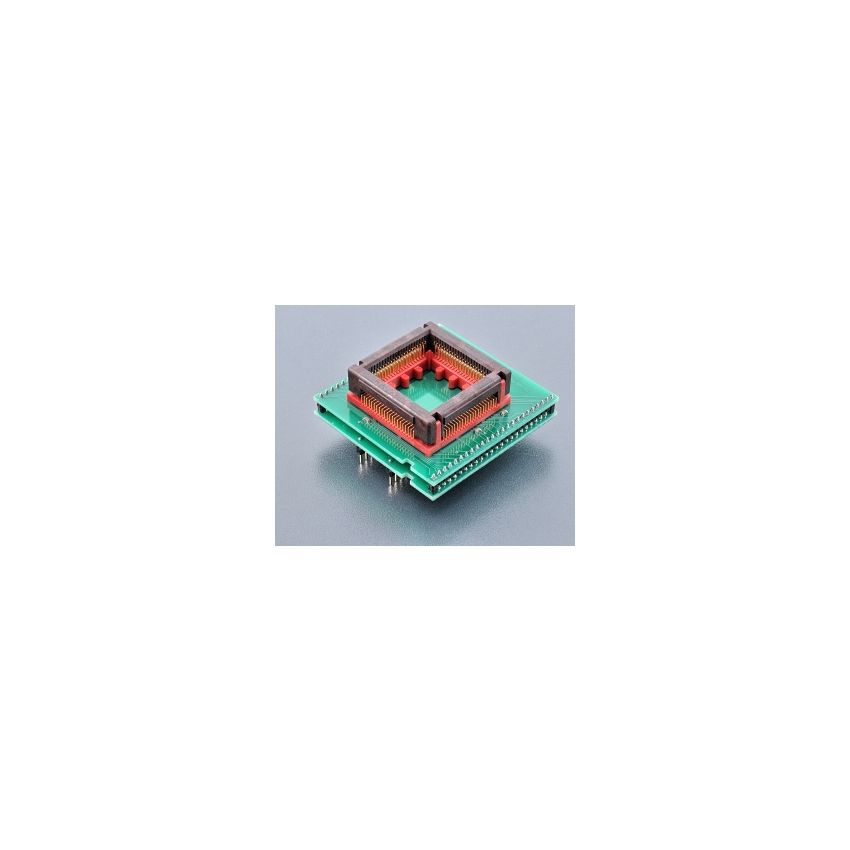

DIL48/PLCC84 ZIF PLD-2

The special adapter is designed for use with Xilinx XC9500 series Complex Programmable Logic Devices (CPLD) in PLCC84 (Plastic Leaded Chip Carrier) package. It is specifically tailored for programming and testing Xilinx XC9500 CPLDs, providing a reliable and convenient solution.



The special adapter features a ZIF (Zero Insertion Force) socket with a PLCC84 OpenTop type design, which allows for easy insertion and removal of the XC9500 CPLDs during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Xilinx XC9500 CPLDs in PLCC84 package, ensuring a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0085. It provides a reliable solution for programming and testing Xilinx XC9500 CPLDs in PLCC84 package, offering durability, compatibility, and ease of use for programming needs.
