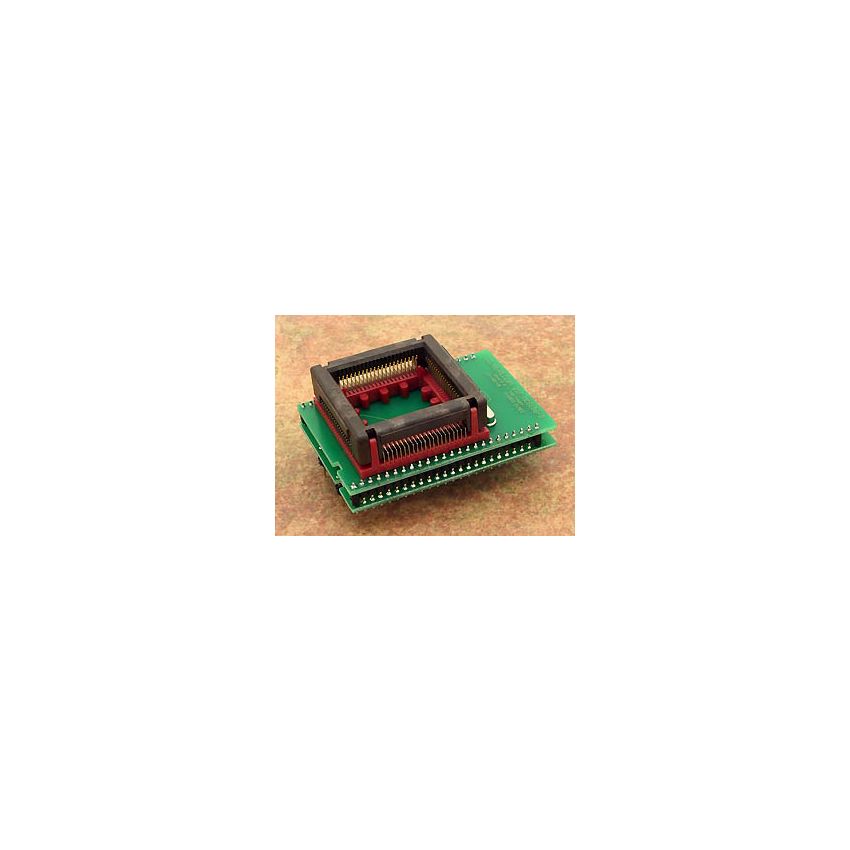

DIL48/PLCC84 ZIF MCS196-2

The special adapter is designed for use with Intel MCS196 series chips, specifically the 87C196 MC, MD, and MH variants, which come in a PLCC84 (Plastic Leaded Chip Carrier) package. It is specifically tailored for programming and testing Intel MCS196 chips, providing a reliable and convenient solution.



The special adapter features a ZIF (Zero Insertion Force) socket with a PLCC84 OpenTop type design, which allows for easy insertion and removal of the MCS196 chips during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Intel MCS196 chips in PLCC84 package, ensuring a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0086. It provides a reliable solution for programming and testing Intel MCS196 chips in PLCC84 package, offering durability, compatibility, and ease of use for programming needs.
