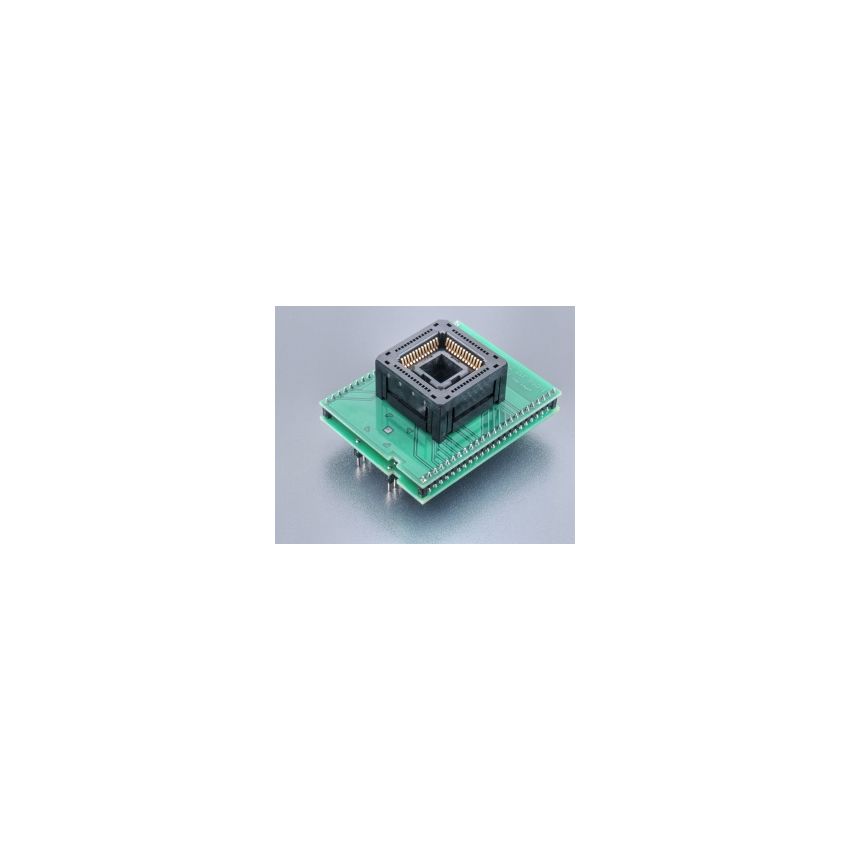

DIL48/PLCC52 ZIF PSD-1

The special adapter is designed specifically for devices in the STM PSD8xxF family in PLCC52 package, providing a reliable and efficient solution for programming and testing these devices. The adapter is compatible with STM PSD8xxF family devices and other compatible devices in PLCC52 package.



The ZIF (Zero Insertion Force) socket on the adapter comes with a mechanical warranty of 10,000 actuations, ensuring durability and long-term use. This makes it suitable for repeated programming and testing tasks without compromising performance, providing a reliable and efficient solution.



The special adapter is manufactured in Slovakia, known for its high-quality manufacturing standards, ensuring reliability and performance. The order number for this adapter is 70-0916, which can be used for easy identification and ordering.



The ZIF socket on the adapter is of OpenTop type, allowing for easy insertion and removal of devices in PLCC52 package. The OpenTop design provides convenient access to the devices, making it user-friendly for programming and testing tasks.



The bottom board of the adapter features 2x24 pins arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This ensures a reliable connection to the devices and accurate operations during programming and testing.
