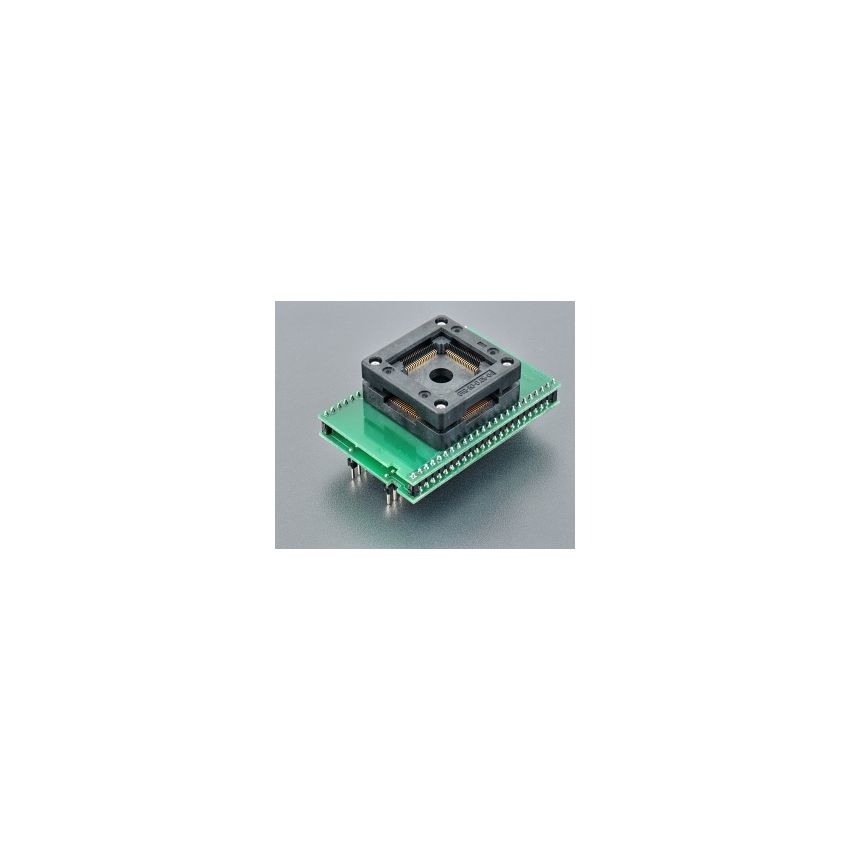

DIL48/MQFP80 ZIF C500

The special adapter is designed for programming and testing devices in the Infineon C505 and C515 families in MQFP80 (Quad Flat Package 80) package. It features a ZIF (Zero Insertion Force) socket with a QFP80 type design, known as ZIF QFP80 OpenTop, which allows for easy insertion and removal of devices during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The bottom of the special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for devices in MQFP80 packages, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0193. This special adapter provides a reliable solution for programming and testing devices in the Infineon C505 and C515 families in MQFP80 packages, offering durability, versatility, and ease of use for programming needs.
