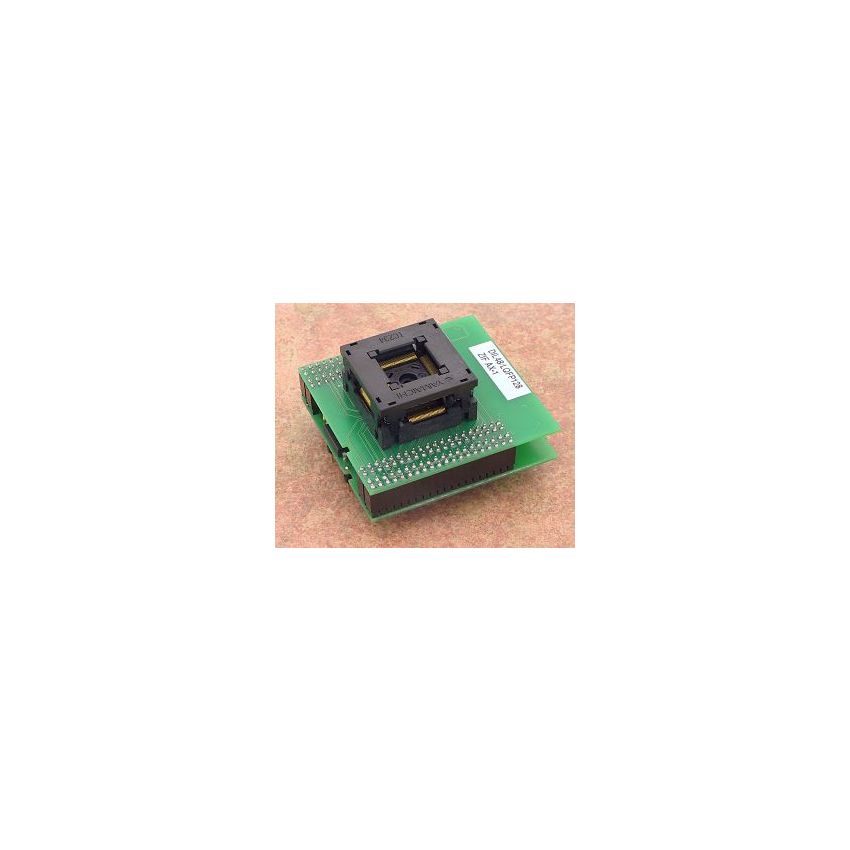

DIL48/LQFP128 ZIF AX-1

The special adapter with order number 70-0757 is specifically designed for use with Asix devices, specifically the AX11015, in an LQFP128 package. This adapter is made in Slovakia, ensuring high-quality construction and performance.



The adapter features a ZIF (Zero Insertion Force) socket in a QFP128 package, with an OpenTop type design. The ZIF socket is rated for 10,000 mechanical actuations, providing durability and reliability during repeated usage.



The bottom board of the adapter features 2 rows of 2x24 pins arranged in a square pattern, with a pin pitch of 0.6x0.6mm and rows spacing of 600mil. These pins provide the necessary connections for interfacing with the Asix AX11015 device, enabling data transfer and programming operations.



The order number for this special adapter is 70-0757, and it is specifically designed for use with Asix devices in an LQFP128 package, such as the AX11015. It is made in Slovakia to high-quality standards, ensuring reliable performance in programming and interfacing applications.
