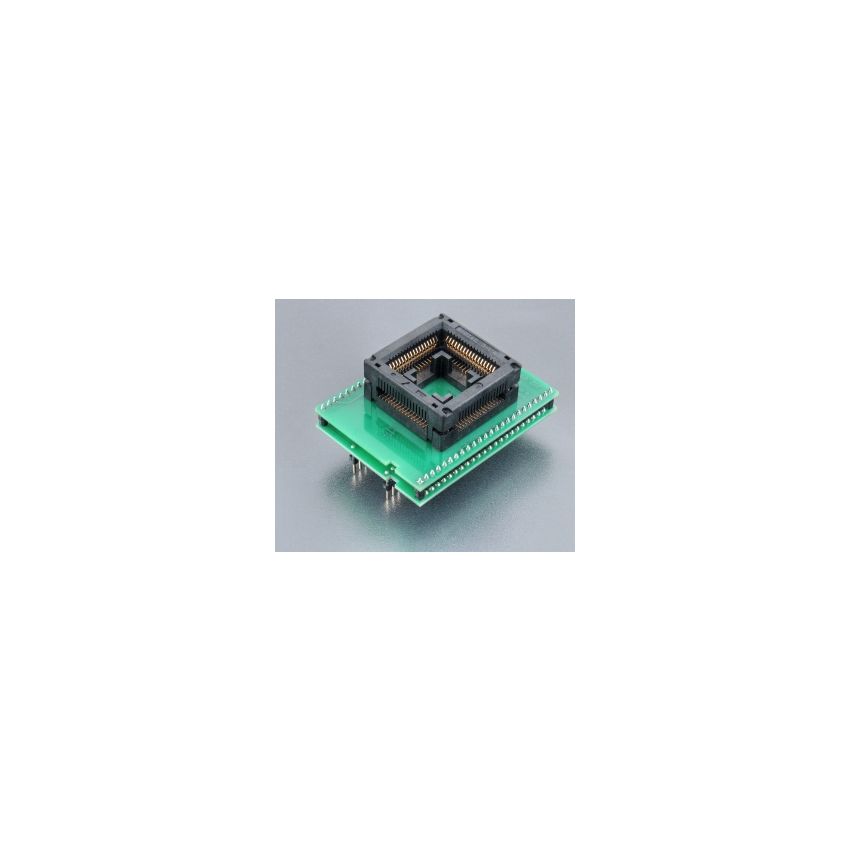

DIL48/PLCC68 ZIF 68HC11

The special adapter is specifically designed for use with Motorola microcontrollers from the 68HC11 family, including chips such as 68HC11KA1FN, 68HC11KA2FN, 68HC11KA4FN, and others. It provides a reliable and convenient solution for programming and testing these microcontrollers.



The special adapter features a ZIF (Zero Insertion Force) socket with a PLCC68 (Plastic Leaded Chip Carrier) OpenTop type design, which allows for easy insertion and removal of the Motorola 68HC11 microcontrollers during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x24 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Motorola 68HC11 microcontrollers in PLCC68 package, ensuring a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0090. It provides a reliable solution for programming and testing Motorola 68HC11 microcontrollers, offering durability, compatibility, and ease of use for programming needs.
