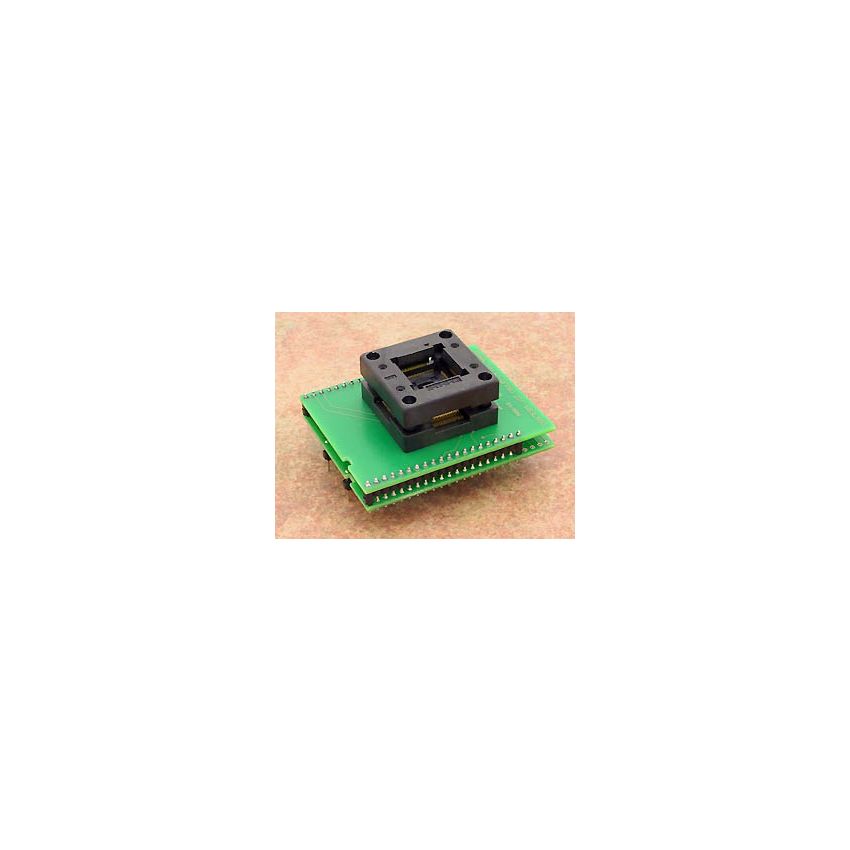

DIL40/QFP80 ZIF W83L950

The special adapter assigned for Nuvoton/Winbond W83L950D in LQFP80 package is designed specifically for this particular microcontroller. It features a ZIF (Zero Insertion Force) socket with a mechanical warranty of 5,000 actuations, providing reliable and durable performance for repeated use in programming and testing operations.



The adapter is made in Slovakia and is identified by Ord. no. 70-0314. It features a ZIF QFP80 socket in an OpenTop type configuration, allowing for easy insertion and removal of the microcontroller. The bottom side of the adapter has 2 rows of 2x20 pins, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This design allows for efficient and secure connection of Nuvoton/Winbond W83L950D microcontroller in LQFP80 package for programming and testing purposes.
