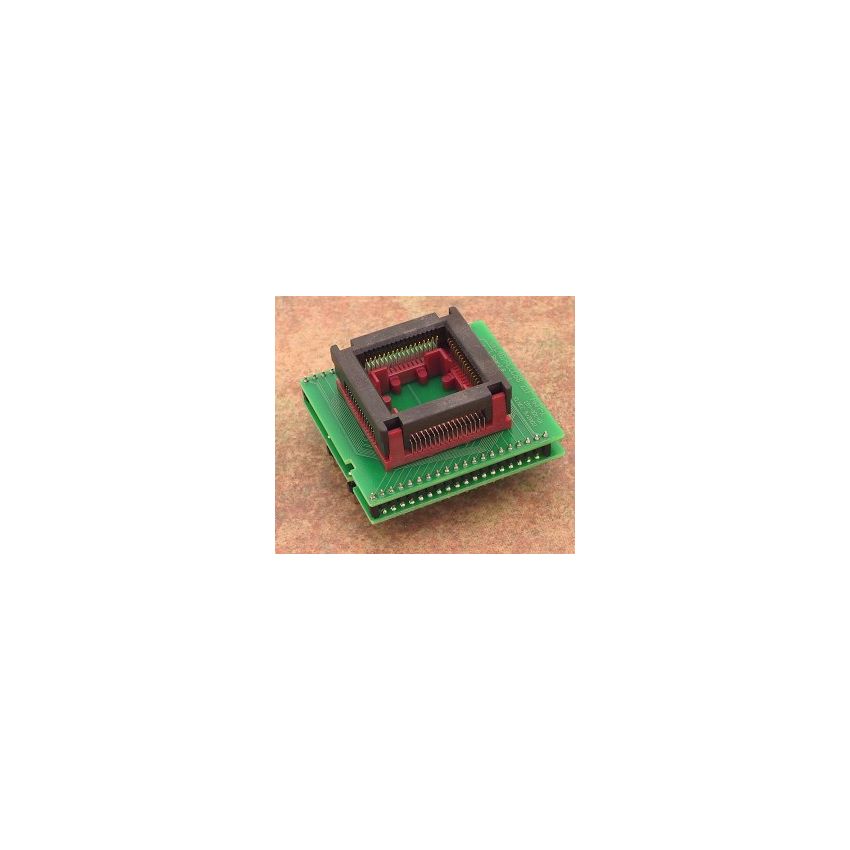

DIL40/PLCC68 ZIF AWM-1

The special adapter is designed specifically for programming and testing Atmel (Temic) microcontrollers, including T89F64, T89C51ID2, and T89C51RD2, which are packaged in PLCC68 (Plastic Leaded Chip Carrier) package. It provides a convenient solution for programming and testing these Atmel microcontrollers.



The special adapter features a ZIF (Zero Insertion Force) socket with a PLCC68 OpenTop type design, allowing for easy insertion and removal of the Atmel microcontroller during programming and testing. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, indicating its durability and longevity for repeated use.



The special adapter has 2 rows with 2x20 pins each, arranged in a square pattern with a pitch of 0.6x0.6mm (600 mil) between the rows. This configuration is specifically designed for Atmel microcontrollers in PLCC68 package, providing a secure and reliable connection during programming and testing.



The special adapter is made in Slovakia, known for its quality manufacturing, and is identified by the Ord. no. 70-0131. It provides a reliable solution for programming and testing Atmel (Temic) microcontrollers in PLCC68 package, offering durability, ease of use, and a high operating (mechanical) warranty for prolonged use.
