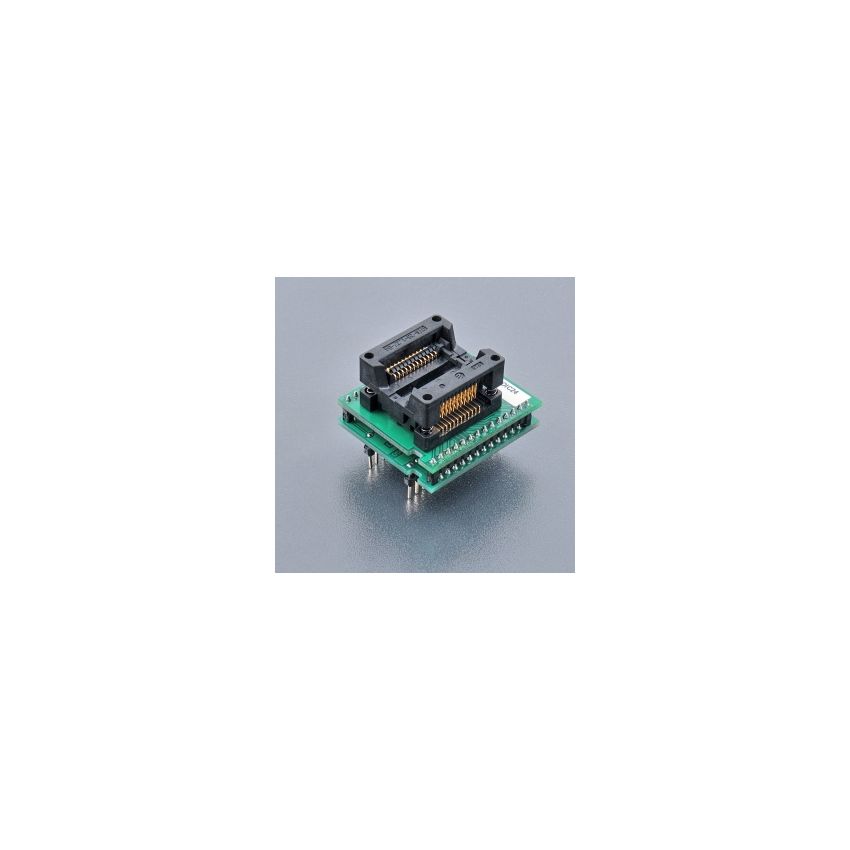

DIL24W/SOIC24 ZIF 300mil

The universal adapter is designed for 300mil SOIC/SOP (Small Outline Package) devices with up to 24-pins, such as PLDs (Programmable Logic Devices), STM ST7xxx series microcontrollers, Cypress CY8Cxxxxx series microcontrollers, and other similar ICs. It is a versatile solution for programming and testing a wide range of SOIC/SOP devices. The adapter is made in Slovakia, known for its high-quality manufacturing standards, ensuring durability and reliability. The order number for this universal adapter is 70-0878.



The socket used in this adapter is a ZIF (Zero Insertion Force) socket, specifically designed for SOIC24 devices. It features an OpenTop type design, which allows easy insertion and removal of the IC without applying excessive force, minimizing the risk of damage to the IC or the adapter. The ZIF socket has an operating (mechanical) warranty of 10,000 actuations, ensuring long-term durability and reliability.



The bottom of the adapter features a 2x14 pin configuration, arranged in a square pattern with a pitch of 0.6x0.6mm and rows spacing of 600mil. This configuration ensures a secure and reliable connection to SOIC/SOP devices with up to 24-pins. The universal adapter is designed to provide a versatile and efficient solution for programming and testing a wide range of SOIC/SOP devices, and it is manufactured to high quality standards in Slovakia.
