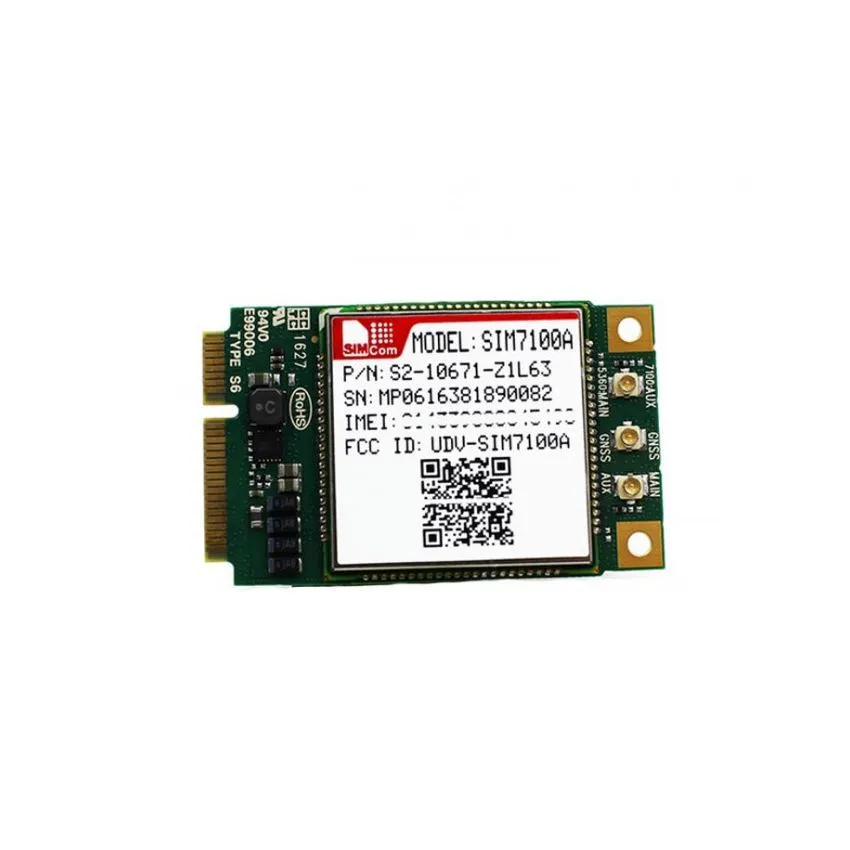

SIM7100A, LTE mPCIe Module – Multi-Band LTE/HSPA+, 100Mbps Downlink Speed

The SIM7100A is a high-performance LTE/HSPA+/UMTS wireless module based on Qualcomm’s MDM9215 platform, designed for M2M and IoT applications. It supports multi-band LTE, UMTS, HSPA+, and GNSS (GPS/GLONASS) capabilities, offering robust communication features for embedded systems, smart devices, and industrial applications. With integrated Cortex-A5 (550 MHz) application processing, the SIM7100A supports USB, UART, SPI, I²C, GPIO, and SDIO interfaces, allowing seamless integration into a variety of hardware platforms. The high-speed LTE connectivity provides download speeds of up to 100 Mbps and uplink speeds of up to 50 Mbps, making it suitable for real-time data transmission, remote monitoring, and cloud-based applications. Certified with FCC, PTCRB, and ROHS compliance, the SIM7100A LTE mPCIe module ensures reliable network connectivity while offering a compact, cost-effective solution for M2M communication and IoT projects.

Key Features:

• Multi-Band LTE/HSPA+/UMTS Support – Supports LTE-FDD B2/B4/B5/B17 and UMTS/HSPA+ B2/B5 for wide network compatibility.
• High-Speed LTE Connectivity – Provides up to 100 Mbps downlink and 50 Mbps uplink speeds for fast data transmission.
• Integrated GNSS Functionality – Includes GPS (GNSS) support with standalone, assisted, and XTRA modes for location tracking.
• Flexible Communication Interfaces – Supports USB 2.0, UART, SPI, I²C, ADC, PCM, GPIO, and SDIO, ensuring seamless hardware integration.
• Robust Industrial-Grade Design – Operates within a wide temperature range of -40°C to +85°C, making it ideal for harsh environments.
• Certified and Compliant – FCC, PTCRB, ROHS, and REACH certifications ensure reliable and secure deployment.

Additional Specifications:

• Type: LTE/HSPA+/UMTS Wireless Module
• Frequency: 700– 2100MHz
• Protocol: TCP/IP, PPP, FTP, HTTP, HTTPS, SMTP, POP3, MMS
