CS2-4-20MA Signal Generator

SKU
PPPS0089
Brand
Part Number
CS2-4-20MA
Out Of Stock
Add to Wish List

Notify me when this product is available:

Guarantee safe & secure checkout

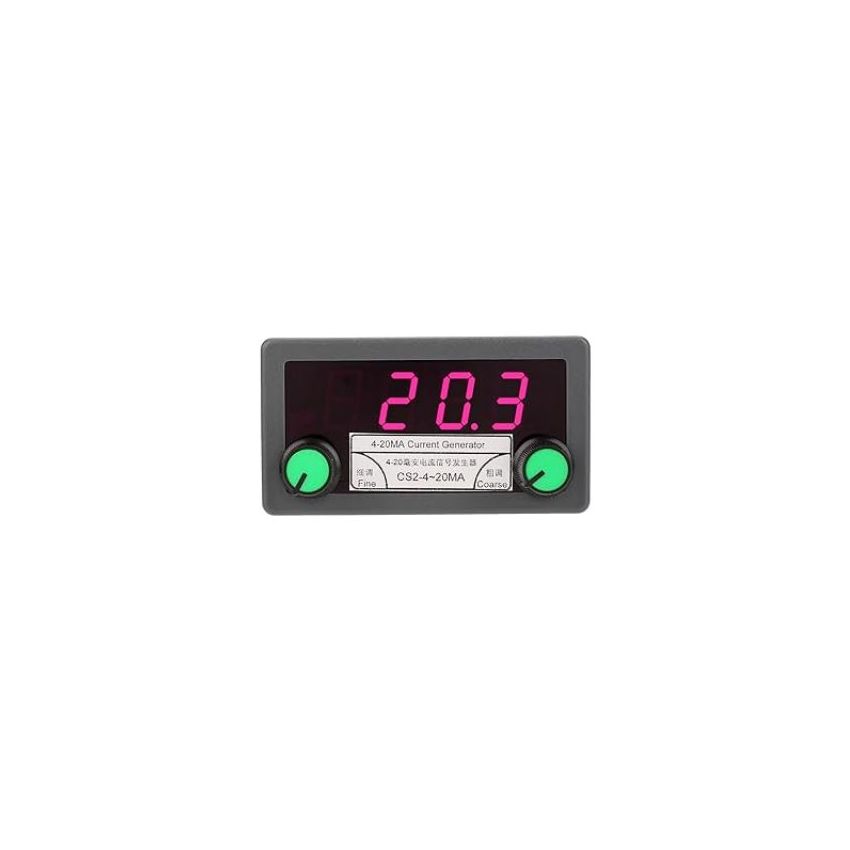

CS2-4-20MA Signal Generator has a power input voltage of 7-30V, but it's important to match the output load and reduce internal resistance. For most users, voltage matching can be solved by replacing with 9V/12V/24V. The power supply must have a current output capacity of at least 150MA to ensure system stability. The output ripple coefficient is <30MV and the highest output voltage is input power voltage -0.9V. The constant average current response time is fast and the output current limit adjustment range is 3.3MA-24MA with a control accuracy of 0.1MA. Temperature accuracy is 3% and humidity drift accuracy is 2%. The product has a compact size of 79 × 43 × 25mm and weighs 71G. It also features a 0.56 inch digital tube display and a gray shell color.

More Information
Brand Besomi
GTIN 1,
