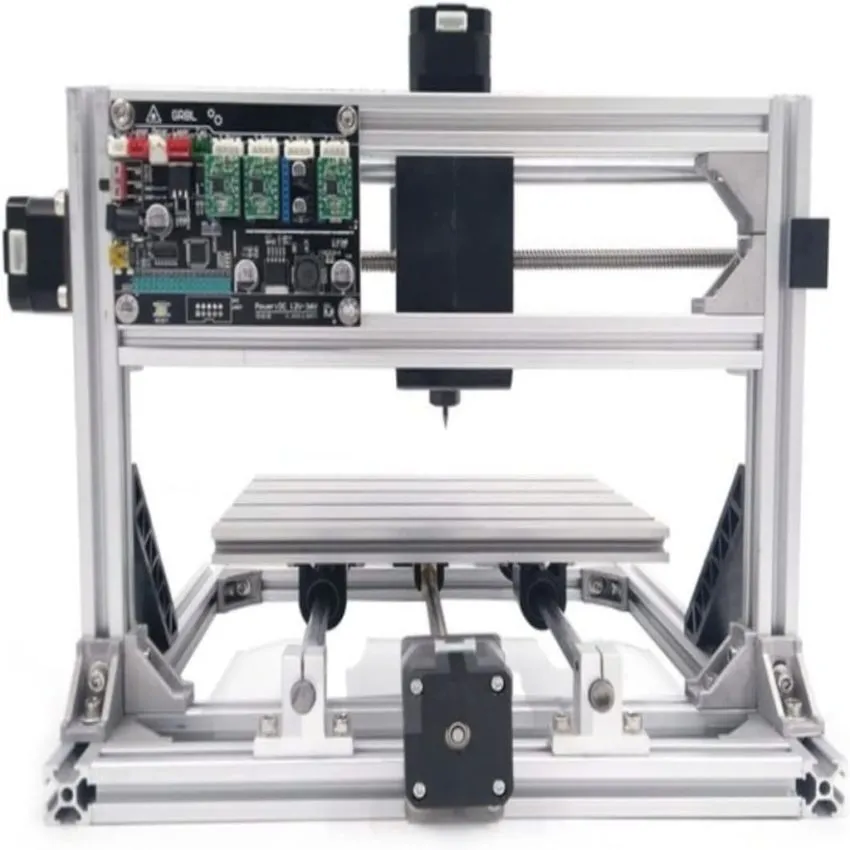

CNC2418 - CNC ENGRAVING MACHINE

This is an engraving machine with a 3-axis system and a working travel of 240mm (X) x 180mm (Y) x 45mm (Z). The driving units consist of T8 stainless steel screw rods with a lead distance of 5mm and double copper nuts to eliminate any difference. The assembly of the machine is straightforward with detailed instructions provided in the user manual.



The machine is controlled by a GRBL control board that connects to a computer via a USB interface. The control board has dual Y-axis, four-axis drive, and full functionality. The machine is capable of outputting 2P/3P and supports PWM and TTL functions, allowing for greater practicality. The control panels are delivered at random but do not affect the performance of the machine.



The machine is equipped with efficient motors, including three 42 stepper motors on each of the three axes for easy movement. The 775 (12-36V)24V spindle motor on the Z-axis can reach a speed of 8000r/min.
