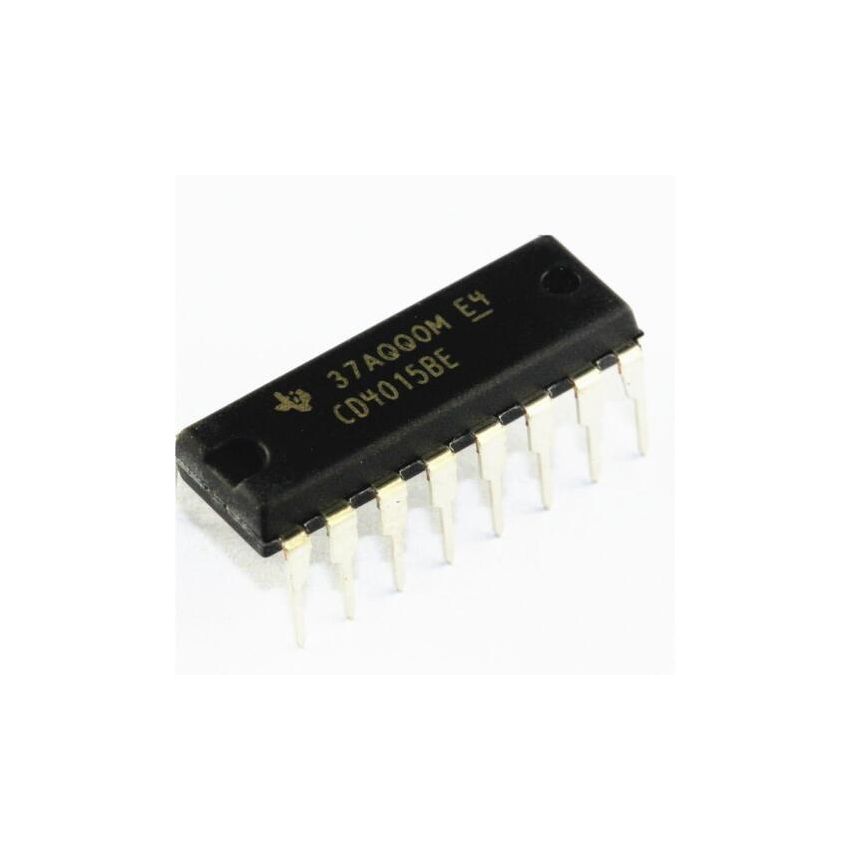

CD4015BE-DIP
AED 3.00
In stock
Guarantee safe & secure checkout
Guarantee safe & secure checkout
Logic Function: Shift Register
Operation Mode: Serial to Parallel
Number of Elements per Chip: 2
Number of Element Inputs: 1
Number of Count Input Enables: 0
Number of Selection Inputs per Element: 0
Number of Element Outputs: 4
Number of Stages: 4
Direction Type: Uni-Directional
Triggering Type: Positive-Edge
Maximum Propagation Delay Time @ Maximum CL (ns): 320@5V|160@10V|120@15V
Absolute Propagation Delay Time (ns): 400
Process Technology: CMOS
Output Type: Push-Pull
Minimum Operating Supply Voltage (V): 3
Typical Operating Supply Voltage (V): 3.3|5|9|12|15
Maximum Operating Supply Voltage (V): 18
Maximum Quiescent Current (mA): 0.1
Propagation Delay Test Condition (pF): 50
Parallel Enable Input: No
Terminal Count Output: No
Minimum Operating Temperature (°C): -55
Maximum Operating Temperature (°C): 125
Packaging: Tube
Mounting: Through Hole
Package Height: 5.08(Max) - 0.51(Min)
Package Width: 6.6(Max)
Package Length: 19.69(Max)
PCB changed: 16
Standard Package Name: DIP
Supplier Package: PDIP
Pin Count: 16
Lead Shape: Through Hole
