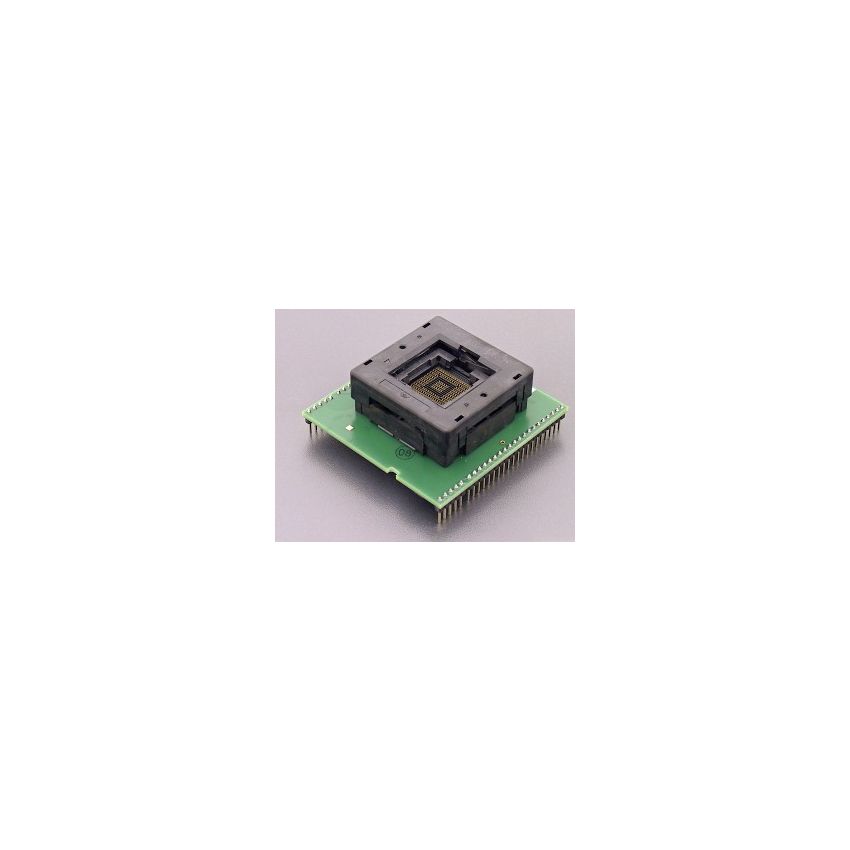

BGA-Top-306 ZIF

specialized top board of BGA adapters assigned for FPGA/CPLD devices Lattice MachXO2, grid 20x20

ZIF socket accepts many variations of BGA packages, that differ in ball diameter, ball height and body thickness.

The picture at Accepted package(s) section shows the range of all dimensions of BGA packages, which are accepted by this BGA-Top board.

operating (mechanical) warranty of ZIF socket - 10,000 actuations at room temperature.

s/n from 2867-00143 are supported from PG4UW software version 3.76

made in Slovakia

Ord. no. 70-2867

Socket ZIF BGA332, OpenTop type

Connection to BGA-Bottom-X 2x25 pins, square, 0.6x0.6mm
