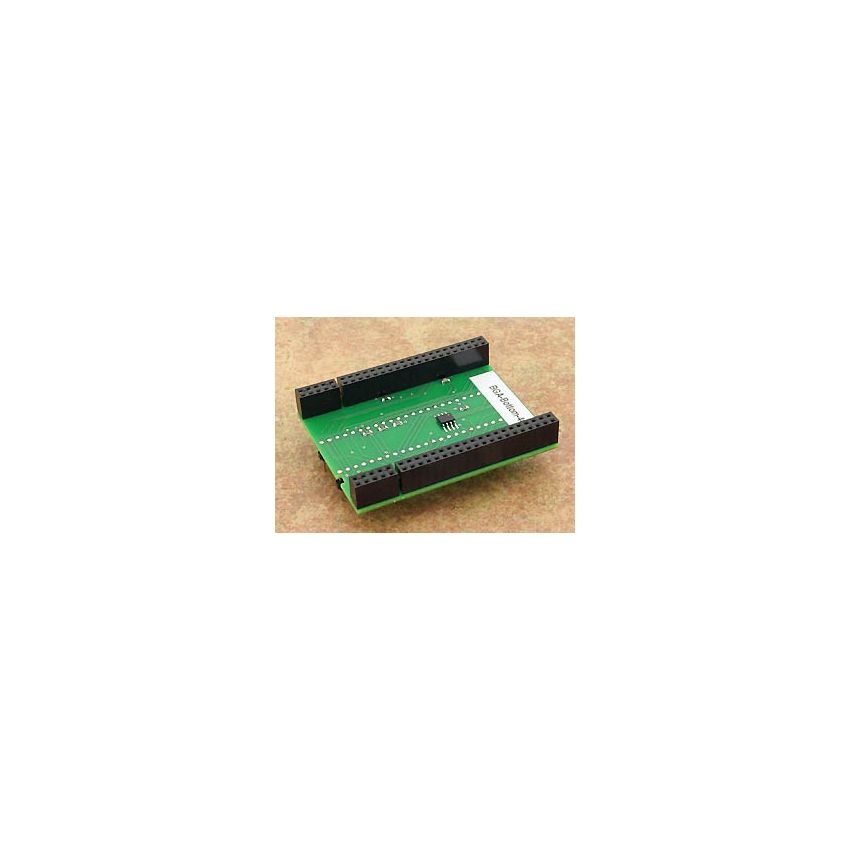

BGA-Bottom-46

The bottom board of the BGA adapter with Ord. no. 70-0531 is specifically designed for STM (STMicroelectronics) STR71xF family of microcontrollers with a matrix size of 8x8. The bottom board is manufactured in Slovakia, adhering to high-quality standards to ensure reliable performance.



The bottom board of the BGA adapter is designed for connection to the BGA-Top-X board, which features 4 rows of sockets for 4x25 wire wrap pins, providing a secure and efficient connection between the microcontroller device and the BGA adapter for programming or testing purposes.



The bottom board of the BGA adapter features 2 rows of 2x24 pins with a square shape and a pin pitch of 0.6x0.6mm. The row spacing is 600mil (0.6 inch), providing a standardized and compatible interface for connecting with the microcontroller device.



The Ord. no. 70-0531 serves as a unique identifier for this specific bottom board of the BGA adapter, making it easy to identify and track in a professional environment. It is designed to provide a reliable and efficient connection between the STM STR71xF microcontroller device and the BGA adapter, enabling smooth programming or testing operations for microcontroller devices in an 8x8 matrix configuration.
