BGA-Bottom-41

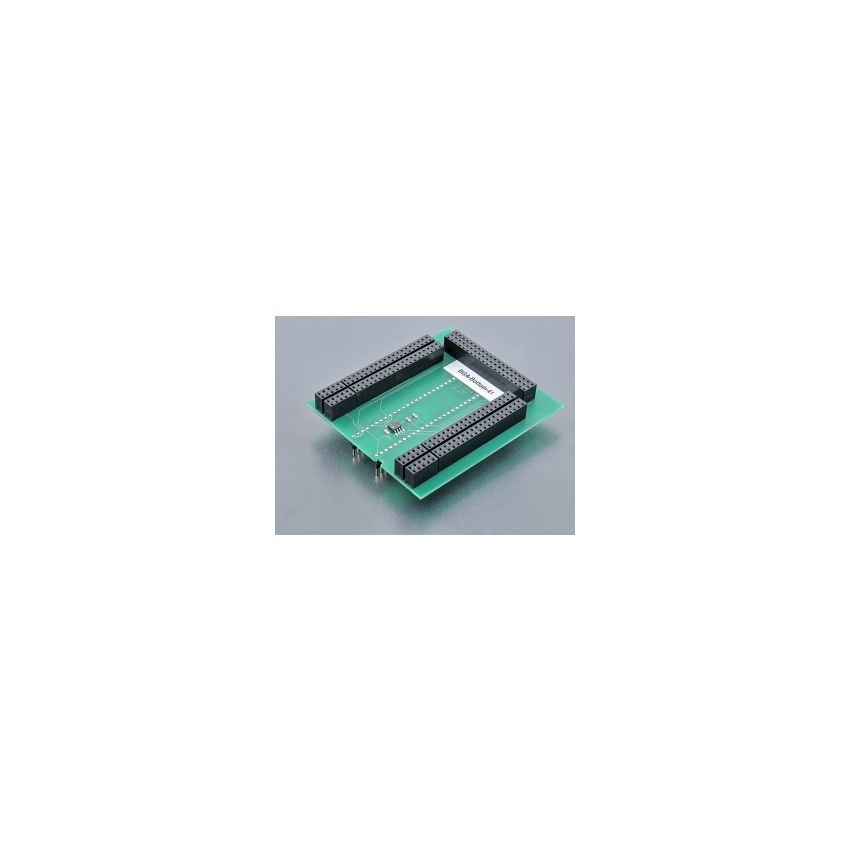

The bottom board of the BGA adapter with Ord. no. 70-0491 is specifically designed for use with CPLD (Complex Programmable Logic Device) devices, specifically Lattice ispMACH 4000V/B/C series, which are organized in a 16x16 matrix. This bottom board is used in conjunction with the corresponding top board (BGA-Top-X) for programming or testing these CPLD devices in a convenient and reliable manner.



The bottom board features 2 rows of 2x24 pins, arranged in a square pattern with a pin spacing of 0.6x0.6mm, and rows spaced 600 mil apart. These pins are designed to provide efficient and reliable connectivity to the CPLD devices, specifically Lattice ispMACH 4000V/B/C series, in a 16x16 matrix configuration.



The bottom board is designed to be connected to the BGA-Top-X board using 8x25 sockets and 3x20 sockets for wire wrap pins, ensuring a secure and reliable connection between the two boards.



The bottom board is made in Slovakia, adhering to high-quality standards to ensure reliable and durable performance. The Ord. no. 70-0491 serves as a unique identifier for this specific bottom board, making it easy to identify and track in a professional environment.



It is important to follow the manufacturer's guidelines for proper usage of the bottom board of the BGA adapter to ensure correct functionality and avoid potential damage to the CPLD devices or the adapter.
